A vertical V-grooving machine is a tool used to cut a V-shaped groove into a material, typically wood or aluminum. It is commonly used in the construction industry for creating decorative or functional V-grooves in panels, doors, or other flat surfaces.
The machine consists of a vertical spin
dle with a V-shaped cutting blade attached to it. The material to be grooved is placed on a table or work surface, and the spindle is lowered into the material to cut the groove. The depth of the groove can be adjusted, allowing for precise and consistent cuts.
There’s no better partner, than KRRASS!

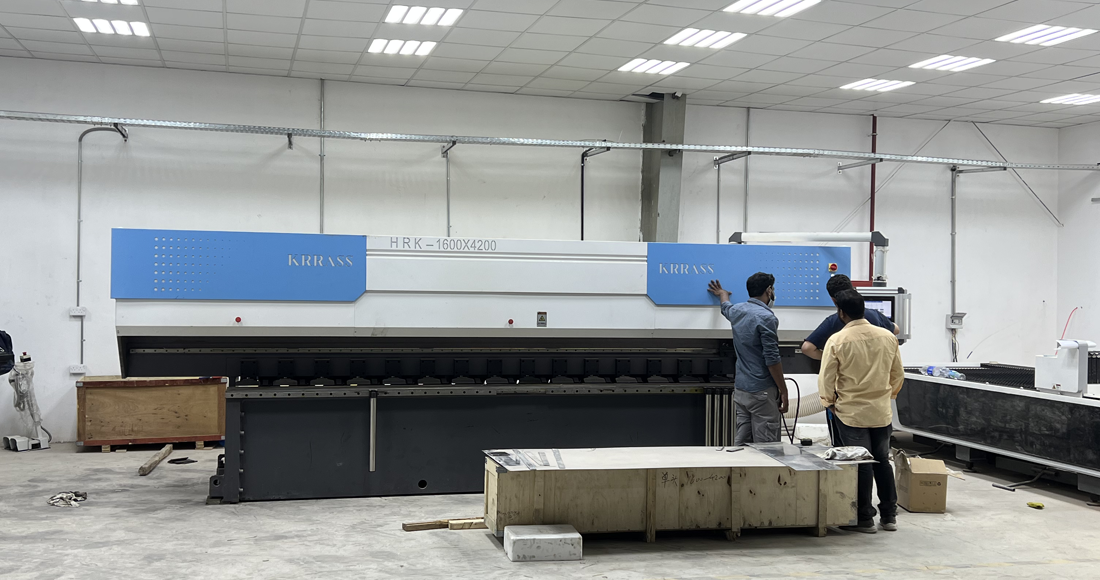

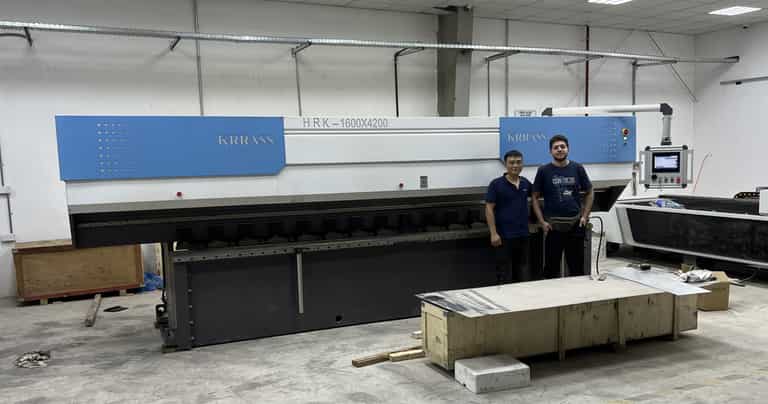

This vertical v grooving machine is equipped with 4 blades. The width of the groove is 1600mm and the length is 4200mm.
Main Technical Parameters:
| No. | Content | Required Parameter |
|---|---|---|
| 1 | Model | HRK1600-4200 |
| 2 | Plate Thickness | 0.4-6mm |
| 3 | Plate Length X Width | 1600x4200mm |
| 4 | Grooving Speed/Speed is changeable or not | 5M-70M/min ( The speed is changeable) |
| 5 | Feeding Speed | 0.5-20M/min |
| 6 | Min. Setting Unit in Y-axis | 0.01mm |
| 7 | Positioning Precision in Y-axis | ±0.05mm |
| 8 | Min. Setting Unit in X-axis | 0.01mm |
| 9 | Positioning Precision in X-axis | ±0.05mm |
| 10 | Min. Setting Unit in Z-axis | 0.01mm |
| 11 | Positioning Precision in Z-axis | ±0.02mm |
| 12 | X-axis Motor Power | 4.5KW |
| 13 | Y-axis Motor Power | 2KW |
| 14 | Z-axis Motor Power | 0.4KW |
| 15 | Workbench Planeness | ±0.01mm |
| 16 | Feeding Way | Back feeding |
| 17 | Workbench is replaceable or not | Replaceable ( Exchangeable as well ) |
| 18 | Workbench is quenched or not | Yes |
| 19 | Number of Cutter | 4 PCS |
| 20 | Max. Depth for one-time Grooving | 1.0mm |
| 21 | Max. Grooving Depth | 3.0mm |
| 22 | Outline Dimension | 5800*3250*2100mm |
| 23 | Weight | 11600kg |
Main Configuration of the machine:
| No. | Name | Manufacturer Name |
|---|---|---|
| 1 | CNC Controller | Mitsubishi – Japan |
| 2 | Servo Motor | Easycat – Taiwan |
| 3 | Servo Drive | Easycat – Taiwan |
| 4 | Speed Reducer | AMD- Taiwan |
| 5 | High-precise Ball Screw | AMD- Taiwan |
| 6 | High-precise Linear Guide Rail | HIWIN – Taiwan |
| 7 | Touching Ball Bearing | NSK – Japan |
| 8 | Grooving Cutter | SECO – Sweden |
| 9 | Electrical Element | Schneider – France |
| 10 | Power Cable | IGUS – Germany |
| 11 | Rack | YYC – Taiwan |
| 12 | Gear | YYC – Taiwan |
Overall, a vertical V-grooving machine is a versatile and powerful tool that allows craftsmen to create precise and attractive V-shaped grooves in various materials.
