Comprehensive Guide to CNC Laser Cutting Machines: Types, Advantages, and Applications

In our increasingly digital world, CNC laser cutting has appeared as a crucial technology in various sectors like manufacturing, engineering, and design. You know, this guide is here to give you an in-depth understanding of CNC laser cutting, its applications, benefits, limitations, and trends. And trust me, this comprehensive knowledge can really open up new opportunities for both businesses and hobbyists.

So, what exactly is CNC laser cutting? Well, it's a laser cutting technology that uses a high-power laser beam guided by computer instructions to cut or engrave materials. It's super accurate and precise and can create complex shapes and designs that would be nearly impossible to do by hand. You'll find it commonly used in industries such as automotive, aerospace, electronics, medical, and construction.

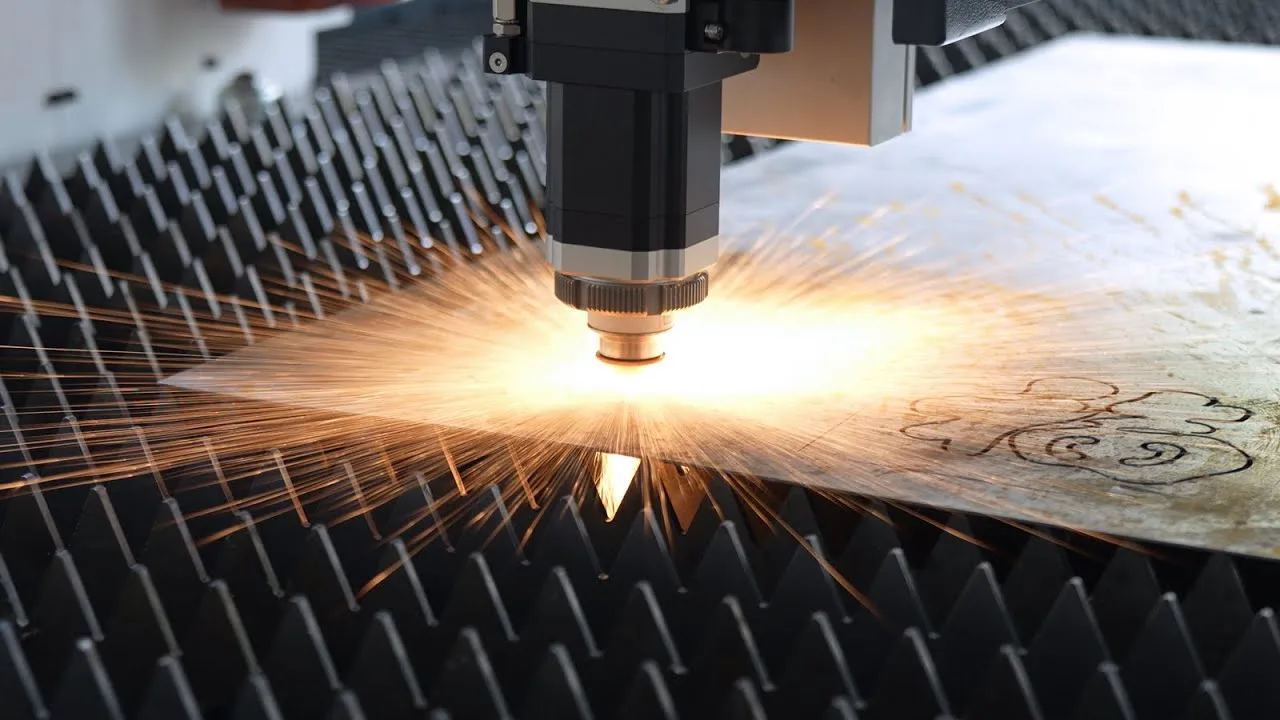

How Does CNC Laser Cutting Work?

Here's a simple explanation of the CNC laser cutting process. First, a design is created using CAD (Computer-Aided Design) software. Then, the CAD design is converted into a CNC program with CAM (Computer-Aided Manufacturing) software. Next, the chosen material is prepared and placed on the CNC machine’s work surface. After that, the machine is set up according to the specific cutting requirements. Once everything is ready, the CNC machine guides the laser beam along the programmed path to cut through the material. While the laser is cutting, the material is cooled to prevent overheating and help with solidification. Finally, after cutting, the parts are inspected for quality, and if needed, post-processing steps can be done.

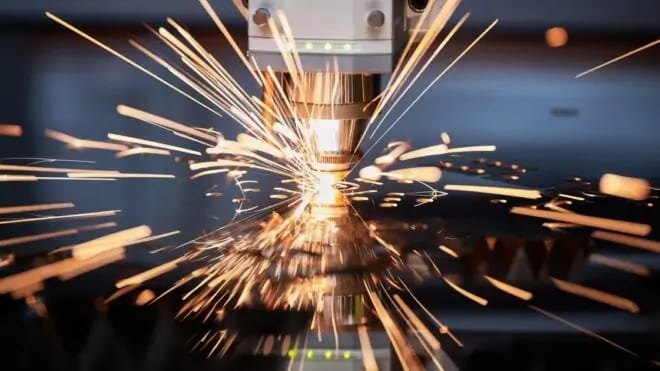

What are the Main Stages of the CNC Laser Cutting Process?

Design and CAD/CAM Programming: It all starts with designing the shape or pattern you want using CAD software. When the design is done, it's converted into machine-readable code with CAM software. This code has the instructions that will tell the CNC machine what to do during cutting.

Material Preparation: The material you want to cut, like metal sheets, wood, acrylic, or other stuff, is prepared and put on the CNC laser cutting machine’s work surface.

Machine Setup: The CNC machine is set up for the specific material and thickness. This means adjusting things like the focal length of the laser, choosing the right cutting parameters (like power, speed, and gas pressure for assist gases), and making sure the material is aligned correctly.

Laser Cutting: Once the setup is finished, the CNC machine starts cutting. The focused laser beam hits the material's surface, heating it up until it melts or vaporizes. The high-energy laser then cuts through the material along the programmed path, following the CNC instructions.

Material Removal: As the laser beam moves, it melts or vaporizes the material. The melted or vaporized stuff is pushed out of the kerf (the cut path), leaving behind the shape or pattern you wanted.

Cooling and Solidification: The laser generates a lot of heat when cutting. So, cooling mechanisms like water or air jets are often used to stop the material from overheating and to help it solidify.

Quality Inspection: After cutting, the cut parts are checked for accuracy and quality. Any problems or differences from the intended design are looked at, and if needed, adjustments are made.

Post-Processing (Optional): Depending on what you're making, the cut parts might need some extra steps like deburring, surface treatment, or assembly.

What are the Main Terminologies used in CNC Laser Cutting?

When you get into CNC laser cutting, you'll come across a lot of terms. These are really important for understanding how things work in this industry. Here are some of the most common ones:

• CNC (Computer Numerical Control): This is when a computer automatically controls machining tools. A CNC machine works on a piece of material (like metal, plastic, wood, ceramic, or composite) to turn it into the shape you want.
• CAD (Computer-Aided Design): CAD is software that designers use to make precise 3D models or 2D drawings of a physical part. These designs are then used by the CNC machine to cut and shape the material.
• CAM (Computer-Aided Manufacturing): This technology uses computer software and machinery to make manufacturing processes easier and more automated. CAM is often linked with CAD for better functionality.
• Kerf: In laser cutting, kerf is the width of the groove made by the laser beam. Knowing the kerf width is important for precision because it can affect the size of the cut part.
• Focal Length: The focal length in a laser cutting machine is the distance between the lens and the material’s surface. It has a big impact on the quality and precision of the cut.
• Assist Gas: During cutting, an assist gas like oxygen, nitrogen, or air is used to push out the molten material and helps with the cutting process. The type of gas depends on the material and the cut quality you need.
• Cutting Parameters: These are settings like the speed of the laser, power, aid gas pressure, and focal point position. You customize them to get the cut you want.
• Pierce Time/Dwell Time: The time it takes for the laser to pierce the material before cutting starts is called pierce time or dwell time.
• Nozzle: The nozzle in a laser cutting machine directs the assist gas into the kerf to push out the molten material.
• Chiller: In laser cutting machines, chillers are used to cool down the laser and the optics, so they work well and last longer.
• Nesting: This is the process of arranging the parts to be cut on the material to waste as little as possible.
• CNC Controller: The CNC controller is like the brain of the CNC machine. It reads and does the G-code or M-code programming instructions to control the machine.
• Laser Power: The power output of a laser, measured in watts, affects both the cutting speed and the thickness of the material you can cut. It also affects the cost of the machine.
• Wavelength: The wavelength of the laser decides how well the material absorbs heat for melting and vaporizing. Different materials absorb different wavelengths better.
• Beam Mode: The way the intensity is spread across the laser beam affects the focal spot size and cut quality. You can change the beam mode for different cutting tasks.
• Focal Spot: The focal spot is where the laser beam is focused on the material. The size and position of the focal spot have a big impact on the cutting quality and speed.

CNC Laser Cutting Programming

In CNC laser cutting, programming is really important. It makes sure the CNC machine does the tasks you want in the right order and way. There are two main programming languages used in this field: G-code and M-code.

What is G-code? G-code, also called preparatory code, is the most widely used numerical control (NC) programming language. It gives you precise control over things like the speed, location, and coordination of the CNC machine’s moving parts, like the laser head, axes, and tool feed. Each line of G-code has commands that tell the machine what to do and how to do it.

What is M-Code? M-code, or miscellaneous code, is another important NC programming language used with G-code. While G-code controls the position and speed of the machine, M-code controls other things like turning the laser on and off, changing the tool, or starting the coolant.

What are the Different Types of CNC Laser Cutting Machines?

There are different types of CNC laser cutting machines, and they're different based on the kind of laser they use and the number of axes they have. Let's take a closer look:

Carbon Dioxide (CO₂): CO₂ laser cutters are really common and versatile. They use a gas mixture with a lot of carbon dioxide and an electrical stimulation to make a powerful laser beam. These machines are great for cutting, engraving, and boring all kinds of materials, including most metals and non-metals.

Fiber: Fiber laser cutters use solid-state lasers with an optical fiber filled with rare-earth elements as the lasing medium. Fiber laser cutting is known for being efficient, precise, and having great beam quality. They're especially good for cutting metals and are often used in industrial applications.

Neodymium-doped Yttrium Aluminum Garnet (Nd: YAG, or YAG): YAG laser cutters use a crystal as the lasing medium, doped with neodymium (Nd). These lasers are good for engraving and cutting metals and ceramics and can also be used for welding. The YAG laser can make high-power beams and can work in both pulsed and continuous modes.

Based on Axis: The axis of a CNC machine is the number of directions the cutting tool can move in. More axes mean you can make more complex shapes and cuts.

• 2-Axis CNC Laser Cutting: A 2-axis CNC laser cutter moves in a flat, 2D plane. It can move its laser head horizontally (X-axis) and vertically (Y-axis), and it's best for cutting flat sheet materials like metal and wood.
• 3-Axis CNC Laser Cutting: Besides what a 2-axis machine can do, a 3-axis CNC laser cutter can also move its laser head up and down (Z-axis), so it can cut deeper. This is really useful for engraving.
• 4-Axis CNC Laser Cutting: A 4-axis CNC laser cutter can do all the movements of a 3-axis machine, and it can also rotate the workpiece around one axis, usually the X or Y-axis. This extra rotation lets you make more complex geometries and shapes.
• 5-Axis CNC Laser Cutting: 5-axis CNC laser cutters are even more flexible. They can rotate the workpiece around two different axes at the same time. This gives you a lot of control and precision when making multi-dimensional, intricate shapes.
• 6-Axis CNC Laser Cutting: The 6-axis CNC laser cutter is the most advanced. It has all the capabilities of a 5-axis machine plus another rotational axis. This means the machine can cut from almost any angle, making extremely complex and precise cuts.

What are some common applications of CNC laser cutting?

CNC laser cutting is used in a lot of different industries because it's so precise and can shape all kinds of materials. Here are some of the sectors that often use this technology:

• Automotive Industry: CNC laser cutting is really important in vehicle manufacturing. It's used to shape sheet metal parts precisely, cut car body panels, and make small components with detailed designs.
• Aerospace Industry: In the aerospace sector, precision is super important. CNC laser cutting machines are used to make parts with really small tolerances, and they're great for cutting the exotic metals and composites that are often used in this industry.
• Electronics Industry: From making circuit boards to creating parts for smartphones, CNC laser cutters are really useful tools in electronics production.
• Medical Equipment Manufacturing: CNC laser cutters make it easier to produce surgical tools, medical devices, and orthopedic implants, where details and accuracy are really important.
• Jewelry Industry: CNC laser cutting is used a lot in jewelry making for cutting and engraving. It can make really intricate designs with high precision.
• Construction Sector: Big CNC laser cutting machines are used to cut structural components for buildings, bridges, and other construction projects.

What are the advantages of using CNC laser cutting?

CNC laser cutting has a lot of advantages, which is why it's so popular in different industries. Besides being really precise, here are some other great things about it:

• Higher Quality Edges: Because laser cutting doesn't touch the material directly, there's less chance of mechanical distortion. This means you get cleaner edges with hardly any burring.
• Narrower Kerfs: Compared to old-fashioned cutting methods, CNC laser cutters make a much smaller cut width (kerf). This lets you make detailed cuts and use your material more efficiently.
• Smaller Heat-Affected Zone (HAZ) and Less Material Distortion: Lasers make a smaller HAZ, so there's less chance of the material getting distorted by heat.
• Less Contamination and Waste: The precision of the CNC laser cutter means there's less waste material. And because it doesn't touch the material, there's less risk of it getting contaminated.
• Less Maintenance Required: CNC laser cutters usually need less maintenance than mechanical cutting machines because they don't touch the material.
• Less Repair Costs: There are fewer mechanical parts in a CNC laser cutter, so there are fewer things that can wear out or break. This means lower repair costs.
• Greater Operator Safety: The operation of a CNC laser cutter is usually automated and enclosed, so it's safer for the operator than manual cutting methods.

How correct and precise is CNC laser cutting?

CNC laser cutting machines are known for being very precise. The standard tolerances for CNC laser cutting are usually between +/- 0.1 mm and +/- 0.01 mm, depending on the machine, the material, and how complex the part is. This level of precision lets industries make parts with really detailed designs and strict size requirements.

How Much Does CNC laser cut Cost?

The cost of CNC laser cutting can change based on a few things. On average, CNC laser cutting services can cost between $75 and $150 per hour, depending on how complex the job is and what materials you're using. Here are some things that can affect the total cost:

• Material Type: Different materials need different laser power levels and cutting speeds, and this can change the cost.
• Cutting Complexity: Complex cuts or detailed designs take more time and can make the cost go up.
• Material Thickness: Thicker materials need more power and time to cut, so they cost more.
• Machine Operation Time: If the machine runs for a long time, it can cost more because of more energy use and possible wear on the machine.
• Post-Processing Requirements: If you need extra processes like cleaning, polishing, or coating, this can add to the total cost.

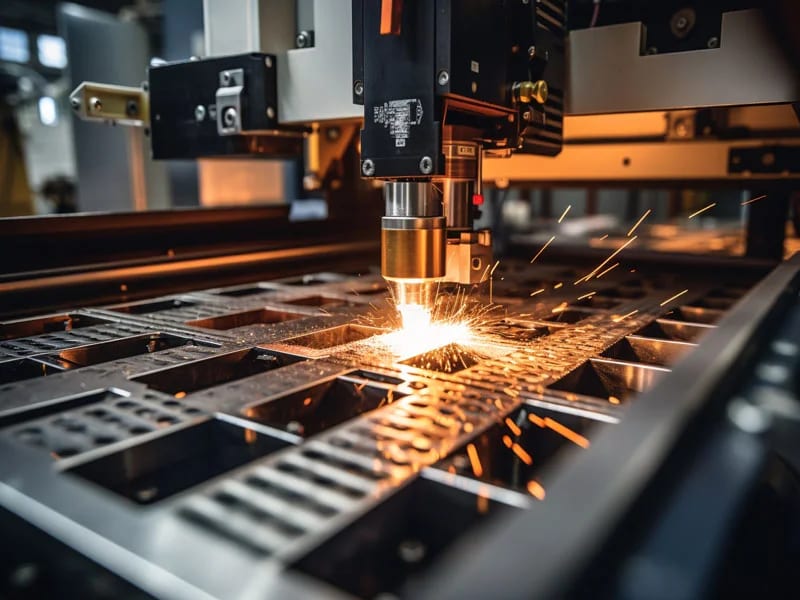

How much does a CNC laser cutting machine cost?

As technology gets better, the price of CNC laser cutting machines can be very different. Things like the machine’s power output, size, brand, type of laser, and what materials it can manage all affect the total cost. It's important to know that these machines are a big investment, but they can make your work more precise, productive, and faster in different industries.

• Small or Hobbyist CNC Laser Cutters: These are good for beginners, hobbyists, or small businesses. They usually have less power and a smaller working area. Prices are between $300 and $5000.
• Mid-Range CNC Laser Cutters: These are good for small to medium businesses that use them regularly. They have more power and a larger working area. You can expect to pay between $5000 and $20,000.
• Industrial or Professional CNC Laser Cutters: These are made for heavy use in industries like aerospace and manufacturing. They usually have high power output and a large working area. Prices start at around $20,000 and can go up to $100,000 or more, depending on the details.

What types of materials can be cut using a CNC laser cutting machine?

CNC laser cutters are really versatile and can cut a wide range of materials accurately and repeatedly. They're usually used for metals and non-metals and can handle different thicknesses depending on the material and the laser power. Here's a closer look at what these machines can cut:

• Metals: This includes steel, aluminum, and other metals. Laser cutters are great for precisely cutting metal sheets, and the power output and laser type affect the cut quality and how thick the metal can be.
• Plastics: Both thermoplastics and non-thermoplastics can be laser cut, but you need to be careful because some can produce harmful fumes. Types include acrylic, ABS, and polycarbonate.
• Thermoplastics: These are plastics that can be molded when heated. Examples are nylon, polyethylene, and polyvinyl chloride.
• Rubber: Laser cutters can cut rubber precisely, which is great for making gaskets, seals, and other custom rubber parts.
• Leather: Whether it's for fashion, upholstery, or crafts, laser cutting machines can cut leather precisely, including complex patterns and designs.
• Ceramics: CNC lasers can cut and engrave ceramics, but you need to be careful to prevent cracking or breaking.
• Wood: From hardwoods to softwoods and plywood, laser cutters can make precise cuts and detailed designs.
• Acrylic: Laser cutting is a great way to work with acrylic, giving you clean edges and intricate designs.
• Foam: Good for packaging, insulating materials, and crafts, foam can be cut cleanly and efficiently with a laser cutter.
• Textiles: From cotton to polyester and even delicate fabrics like silk, laser cutters can make precise cuts without fraying.
• Paper: Whether it's for crafts, model-making, or packaging, laser cutters can handle different thicknesses of paper.
• Composites: Composites like fiberglass and carbon fiber can be cut with a CNC laser, but you need to be careful because of the risk of harmful particles.
• Stone: Laser cutters can engrave stone, but it's usually not possible to cut through it because it's too thick and hard.
• Glass: Like stone, laser cutters are more often used to engrave glass than to cut it.

Are There Any Limitations to CNC laser cutting?

Even though CNC laser cutting machines are efficient and precise, they do have some limitations. Understanding these is important if you want to use these machines as well as possible and get the results you want.

• Difficulty with Certain Materials: While CNC laser cutters can manage a lot of materials, some are harder to cut than others. Reflective metals like copper and brass can reflect the laser beam, which can damage the machine. Also, cutting materials like polycarbonate can produce harmful gases.
• Thickness Limitations: The thickness of the material that a CNC laser cutter can manage depends on the machine's power. Lower power machines might have trouble with thicker materials, especially metals.
• Lack of 3D Cutting Capability: CNC laser cutters are usually 2D cutting tools. They can't do the same kind of deep 3D shaping that tools like CNC routers can.
• Heat Affected Zone (HAZ): The heat from the laser can change the properties of the material around the cut, and this might affect its strength.

What are some common problems and defects with CNC laser cutting?

Even with high precision, laser cutting isn't always perfect. There are some common problems and defects that can happen and affect the quality of the cut. These include:

• Burn marks: Too much heat can cause the edges of the material to change color or burn.
• Dross: This is a byproduct of the cutting process. It's molten material that hardens on the bottom edge of the cut.
• Warping: The heat from the laser can make thin materials bend or warp during cutting.
• Incomplete cuts: If the laser power is too low or the cutting speed is too high, the laser might not cut all the way through the material.
• Overcutting: When the power is too high or the speed is too slow, the laser might cut more than it should.

What are some design tips for CNC laser cutting?

CNC laser cutting is an advanced technology that gives designers and manufacturers a lot of control over the cutting process. To get the most out of it, there are some things to think about when you're designing.

For example, choosing the right laser power is really important to get the cut you want. Depending on the material and its thickness, you need to adjust the power output of the laser. A CO₂ laser cutter might be better for some materials like wood, plastic, or acrylic, while a fiber laser could be a better choice for metals.

Designers should also think about the cutting speed and the gas used. The best cutting speed often depends on the material, the machine, and the quality you want. Sometimes, slower speeds can give you more precise cuts, and other times, faster speeds can reduce the heat impact zone and make the cut better.

Material compatibility and how the material behaves when it's being laser cut is another important thing to consider. You need to know how different materials react to the heat from the laser beam, and how this affects the shape and finish of the cut.

And finally, design files are really important in CNC laser cutting. Formats like DXF or DWG are usually used, and design software like CorelDraw or Adobe Illustrator can help you create the designs. The design file should be clear and correct, so the laser cutter knows exactly where to cut or engrave.

Here are a few more design tips to think about:

• Avoid intricate designs that could damage the material or cause problems.
• Think about the kerf width when you're designing your parts.
• Remember the laser's tolerance when you're designing for tight fits.
• Make sure there's enough space in your design for heat to escape so the material doesn't melt or deform.

How long does CNC laser cutting typically take?

The time it takes for a CNC laser cutting operation can be very different and depends on several things. These include the power of the laser, how complex the design is, the thickness and type of material, and how precise you need to be.

As a rough guide:

• For thin sheet metals (1mm), a CNC laser cutting machine might only take a few minutes to cut a simple shape, but a detailed pattern could accept to 15 - 20 minutes.
• For thicker materials (10mm), cutting time could be from 20 minutes for a simple design to over an hour for a more complex pattern.
• If engraving is involved, this can make the operation take even longer, depending on how complex and big the engraving is.

Remember, these are just rough estimates, and the actual cutting time could be shorter or longer, depending on the things we mentioned above.

Is CNC laser cutting hard?

Like any manufacturing technology, learning to use CNC laser cutting well takes some understanding of the process, how the machine works, and design principles. For beginners, there can be a bit of a learning curve, especially when you're dealing with different materials, design software, and machine settings.

But once you get the basics, CNC laser cutting can be pretty straightforward. A lot of CNC laser cutters these days have easy-to-use software interfaces and detailed manuals, which makes it easier for people to start. The important thing is to understand how the power of the laser, the cutting speed, and the type of material all work together, so you can get the best cut and the results you want.

Also, both businesses and hobbyists can usually find help and resources online, like tutorials, forums, and support communities. These can help you solve problems and learn new techniques. So, even though CNC laser cutting might seem a bit scary at first, with the right information, training, and practice, it can be a really useful tool for manufacturing and creative projects.

What is the Environmental impact of CNC laser cutting?

Just like any manufacturing process, CNC laser cutting has an impact on the environment that we should think about. These impacts can be direct, like the emissions or waste from the cutting process, or indirect, like the energy the machine uses.

Laser cutting uses a lot of electricity. Higher-powered lasers, like fiber lasers, can use more energy than CO₂ lasers, but they might be faster and more efficient, which could balance it out. It's important for the people using the machines to think about how much energy they're using and try to use less if they can.

The cutting process can also create waste like offcuts, smoke, and fumes. You can often reduce material waste by designing and arranging the parts well. The smoke and fumes need to be managed safely with good ventilation and filtration systems.

Also, the lifespan of the laser, the life of the machine, where the electricity comes from, and whether the waste materials can be recycled all affect the environmental impact. Businesses that want to reduce their impact might think about using renewable energy, using the machine efficiently, and having a waste management plan.

Remember, even though CNC laser cutting can be really precise and efficient, like any manufacturing process, we need to manage it carefully to reduce its impact on the environment.

How does CNC laser cut compare to alternative technologies?

CNC laser cutting is a technology that has really changed the manufacturing industry, giving us amazing speed, precision, and versatility. But other technologies can have different benefits or drawbacks, depending on what you're making.

CNC Milling

CNC milling is one alternative. This method uses rotating cutting tools to remove material from a workpiece, and it can make complex 3D shapes and designs. But compared to CNC laser cutting, milling can be slower and less precise, especially when you're working with softer materials. The heat from laser cutting, instead of the mechanical stress from milling tools, gives a cleaner cut with less distortion of the material.

Waterjet Cutting

Another choice is waterjet cutting, which uses a high-pressure stream of water, sometimes with an abrasive substance, to cut materials. This method can cut thicker materials than a laser cutter and works with a wide range of materials, including stone and glass, which are usually hard for laser cutters to manage. But waterjet cutting can be less precise than CNC laser cutting, which means a bigger kerf, or cut width, and it might need more work after cutting to get a smooth finish.

CO₂ Laser Cutters

CO₂ laser cutters use a gas laser based on a carbon dioxide mix to cut materials. These lasers are powerful and can cut thicker materials than fiber lasers. But they're less efficient and need more power to run, and they have trouble cutting reflective materials because the laser beam can bounce back into the machine and cause damage. In contrast, CNC fiber laser cutting machines, like the KRRASS range, can cut a wide range of materials, including highly reflective metals, safely and efficiently.

What are the future technology trends in CNC laser cutting?

As the need for precision, speed, and efficiency in manufacturing keeps growing, CNC laser cutting technology is also changing. For example, the use of artificial intelligence and machine learning is making laser cutting machines smarter and more automated. These improvements are helping to perfect the cutting process in real-time, reduce waste, and increase productivity.

Another trend to watch is the continuing improvement in laser power and beam quality. Machines like the KRRASS Smart, with its power range of 1.5kW to 20kW, are giving us more powerful lasers that can cut thicker materials faster and more precisely.

Also, as Industry 4.0 becomes more popular in manufacturing, we'll probably see a more connected and data-driven approach to laser cutting. With CNC machines linked together, real-time data can be shared, analyzed, and used to improve the whole manufacturing process.

Where to get quality CNC laser cutting machines?

Choosing a CNC laser cutting machine is a significant investment. It is, therefore, essential to consider several factors before making a purchase. These can include:

• The power output of the laser, which decides its cutting speed and the thickness of the material it can cut. You need to make sure the power of the laser is suitable for the materials and thicknesses you'll be working with. If you're mainly cutting thin materials, a lower power machine might be enough, but for thicker or more challenging materials, you'll need a more powerful laser.
• The size of the cutting area, which dictates the maximum size of the workpiece the machine can manage. Think about the size of the projects you'll be doing. If you often work on large pieces, you'll need a machine with a bigger cutting area. But if you're mostly dealing with small parts, a smaller cutting area might be fine and could even save you space and money.
• The precision of the machine, which affects the quality of the cut and the level of detail it can achieve. High precision is crucial, especially if you're making parts that need to fit together perfectly or have intricate designs. Look for machines with good reputations for accuracy and check reviews or ask other users about their experiences with a particular model's precision.
• The machine’s compatibility with different materials. You want a machine that can handle a wide variety of materials if your work involves different types. Some machines are better suited for certain materials than others, so make sure the one you choose can work with what you need. For example, if you'll be cutting a lot of metals, you might want a fiber laser cutter that's known for its effectiveness with metal cutting.
• The availability of technical support and after-sales service from the manufacturer. This is really important. Machines can sometimes have problems, and you need to know that you can get help quickly. A good manufacturer will offer technical support, either over the phone, online, or with on-site visits if needed. They should also have a good supply of replacement parts and be able to aid with any maintenance or repair issues that come up.

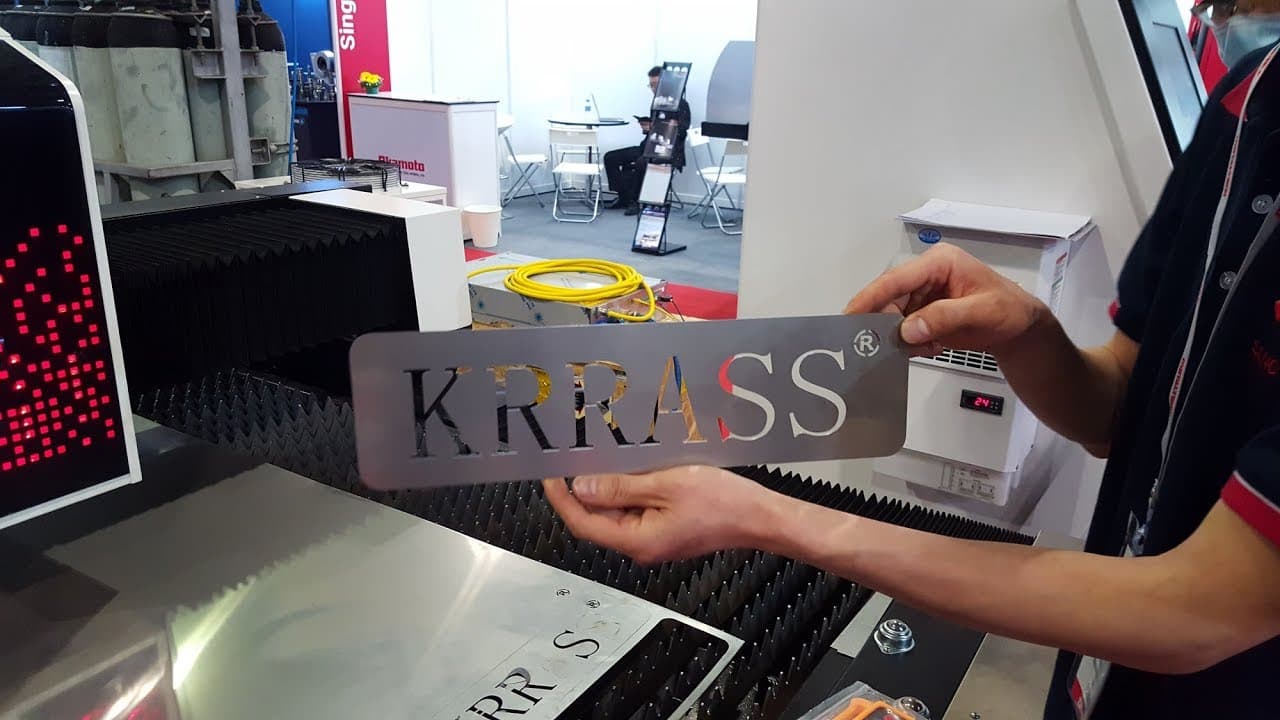

Given these considerations, KRRASS’s range of CNC fiber laser cutting machines stand out as a compelling choice.

The KRRASS Smart series, including the 1.5kW, 3kW, and 6kW Fiber Laser Machines, are designed for ultra-high speed cutting of thin sheet metal parts. These machines are not only fast and flexible, but also cost-efficient, reducing operating costs while increasing productivity. Their high-speed cutting capabilities mean you can get your jobs done quicker, which can be a big advantage in a busy production environment.

The KRRASS Smart, with its power range of 1.5kW to 20kW, is a versatile and compact 2D laser cutting machine. It is capable of producing superior quality results on a wide variety of materials, including highly reflective metals and thick mild steel. The fact that it can manage such a diverse range of materials makes it a very useful machine for many different applications. Whether you're working on a project that requires cutting reflective metals like copper or brass, or you need to cut through thicker mild steel, this machine has the power and versatility to do the job well.

These machines are the most complete, compact, and configurable sheet metal laser cutter systems on the market, designed to evolve with your needs. As your business grows or your projects change, you can count on these machines to adapt and continue to perform at a high level. They offer a great combination of features and performance that can really enhance your manufacturing or creative processes.

Conclusion

CNC laser cutting technology is at the forefront of the manufacturing sector, offering unparalleled precision, speed, and versatility. As the technology evolves, companies like KRRASS are leading the way, providing innovative solutions that meet the ever-changing demands of industries. Whether you are a small business owner, a hobbyist, or an industrial manufacturer, investing in a CNC laser cutting machine can transform your operation, opening up new possibilities for design, prototyping, and production. It's an exciting technology that continues to grow and improve, and by understanding all the aspects we've talked about in this guide, you can make the most of what CNC laser cutting has to offer. So, don't be afraid to explore the possibilities and see how this amazing technology can benefit you and your work. Happy cutting!
