CNC Press Brake Machine 3-4 Axis with DELEM DA-58Tx Controller

Certificates For Banner

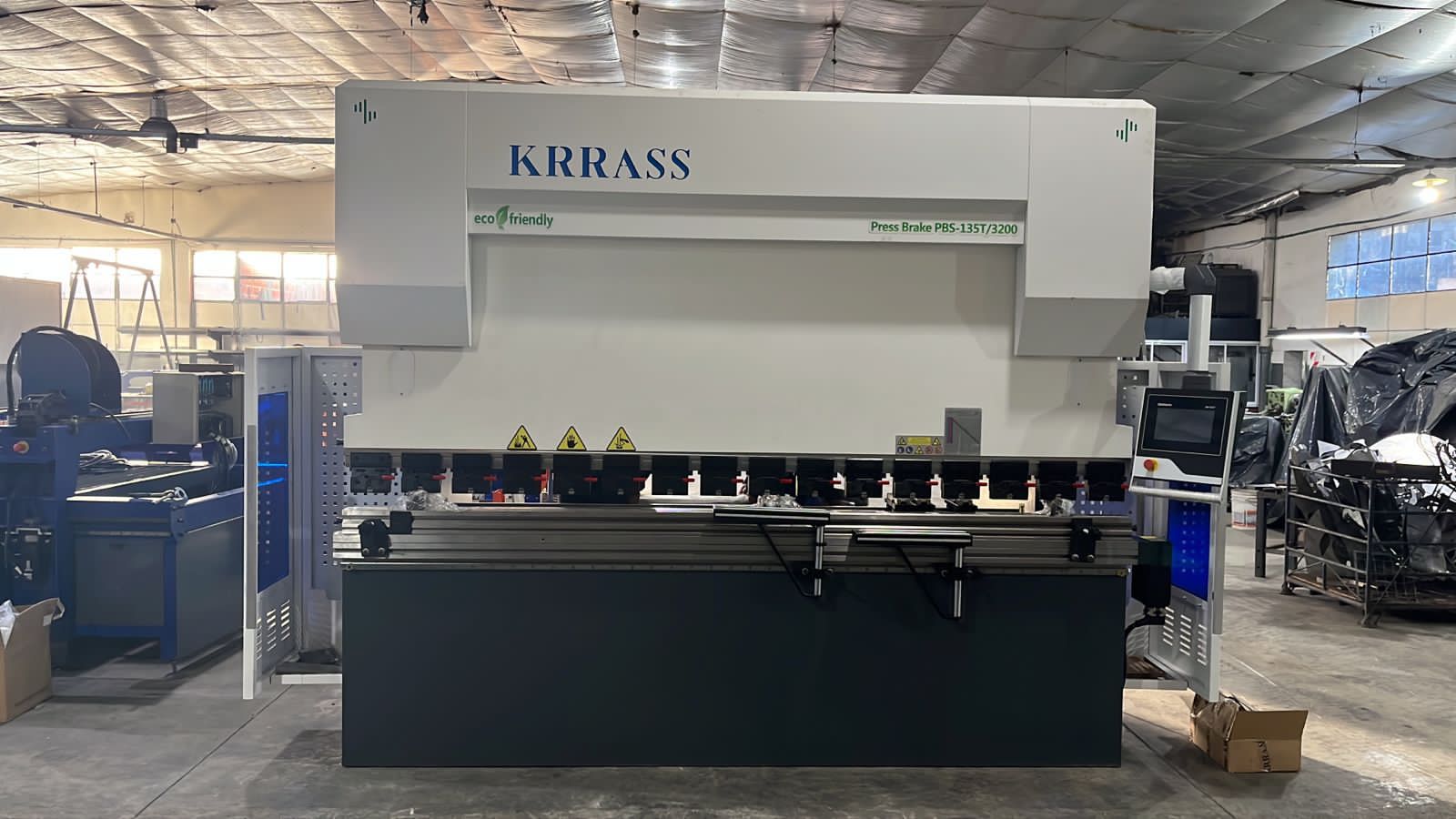

CNC Press Brake Machine with 3-4 Axis

MB8 Series CNC Press Brake Machine, it’s an affordable CNC Press Brake Machine with an impressive number of features and options. Competitive pricing with advanced DELEM DA-53T or DA-58Tx 2D capable graphical controls. Advanced Series is your first choice in Y1/Y2 machine technology.

sheet metal press brake 4 axis witht da58t
CNC Press Brake Machine with DELEM DA-58Tx Controller - square blank shearing

Simple and solid press brake

CNC Press Brake Machine with DELEM DA-58Tx Controller - shears manufacturers

Work area can be customized and all types of tool clamping can be installed

CNC Press Brake Machine with DELEM DA-58Tx Controller - guillotine shears models

Tailored-made sheet metal press brake

  • Controller: DELEM DA-58Tx
  • Electrics: Schneider Electric - France
  • Main Motor: Siemens Motor - Germany
  • Servo Motor: ESTUN
  • Foot Switch: KACON - South Korea
  • Hydraulic System: Bosch Rexroth - Germany
  • Oil Pump: Sunny - USA
  • Sealing Ring: PARKER - America
  • High Efficiency Motor - Class IE3
  • Tube Connector: EMB - Germany
  • Backgauge: Hiwin - Taiwan
  • Grating Ruler: Fagor

Standard Equipment

Introduction to Configuration

solid body

FEA & Stress Analysis

Stress Analysis & Finite Element Analysis

The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above, FEA makes sense.

DELEM DA-53T Control

DELEM CNC Control System

DELEM DA-53T Control

  • "Hot-key” touch navigation
  • 10.1" high resolution colour TFT
  • Up to 4 axes (Y1, Y2 + 2 aux. axes)
  • Tool / material / product library
  • Servo and frequency inverter control
  • Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
  • TandemLink (option)
  • USB memory stick interfacing
  • Profile-T offline software
DELEM DA58Tx

DELEM CNC Control System

DELEM DA-58Tx Control

  • 2D graphical touch screen programming
  • 18.5" high resolution colour TFT
  • Bend sequence calculation
  • Crowning control
  • Servo and frequency inverter control
  • Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
  • USB, peripheral interfacing
  • Profile-T offline software
Manual Upper Tool Clamping

Manual Upper Tool Clamping

The CNC Press Brake Machine use all Raw material is provided by qualified suppliers and chemical composition corresponds to international standards. Therefore, raw material yield and tensile strength are guaranteed, are standardized with a 8.4 x 3.5 mm safety groove, which keeps the tool from falling out.

Advantage:

  • Safe and fast tool change
  • Can be used without modifying Europe type punches
  • Front clamp - vertical tool change
  • Rear clamp - horizontal tool change
4-axis-backgauge

KRRASS® BGA-4 BackGauge

CNC Press Brake Machine 4-Axis CNC BackGauge with X, R, Z1, Z2-Axis

  • Hiwin Ball screws and linear guide on X, R-axis
  • Axis X speed 500 mm/s
  • Automatic Z1, Z2-axis with HIWIN linear guide
  • Mechanical accuracy ± 0.01 mm
  • Fingers with double stop and micrometric adjustment
Rexroth Proportional Valve

Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the machine tool has high stability and high precision in the process of high-speed operation.

Advantage:

  • The frequency response (response frequency) is higher and can be as high as 200Hz.
  • It can continuously and proportionally control the pressure and flow of the hydraulic system, control the position, speed, and force, and reduce the impact of pressure changes.
  • Closed-loop control, signal feedback.
  • Original German imported products, longer service life.
Electric Crowning

KRRASS® family Electric Crowning

  • Very precise bending angles
  • Europe type dies with 60 mm and 90 mm
  • Base can be clamped as well as single dies with 13 mm tang
  • Electric crowning with a controller
  • Precise positioning and alignment of the crowning table
  • Easy and fast usage
DSP Laser Protection

Italy DSP Laser Protection (Optional)

DSP® laser protection will be necessary if you have a high requirement for the safety.

Advantage:

  • Laser protection, Multi beam Receiver
  • Pretective areas, Front, center and rear
  • The safety level is CAT.4 and SIL3
  • Detection Case protection degree: IP 65
  • Laser classification: class 1 M
  • Response time: 5 ms
  • Change Speed Point : 5mm + Stopping Space
  • The maximum protective distance is up to 15M
  • LED indicators show various states
Siemens Main Motor

German Siemens Main Motor

The German famous brand motor increases the service life of the press brake machine and keeps the machine working in a low-noise environment.

Hybrid Servo ECO Function

Hybrid Servo ECO Function

KRRASS® New Hybrid Servo ECO Function (Optional)

KRRASS® promotes a friendly environmental policy, and as such all our equipment features the Hybrid ECO Function. Our hybrid servo-drive positioning system provides accuracy at any position.

CNC Press Brake Machine with DELEM DA-58Tx Controller - power consumption advantage

Advantage:

  • Operating cost is min due to low energy consumption. Thus, it gives advantages to the user with high efficiency & low operation cost.
  • High dynamic for a higher productivity of the machine.
  • Compliance with EU Directives.
  • Lower energy for a green Machine.
  • Lowered sound pressure level at 50 dB.
  • The servo-motor, with closed loop speed control.
  • Energy efficiency of up to 35 % compared to conventional systems.
Punches & Dies

Punches & Dies

CNC Press Brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate toolings according to different bending requirements of customers.

CNC Press Brake Machine Technical Parameter

Model Bending Pressure (kn) Bending Length (mm)  Column Distance (mm) Throat Depth (mm) Slider Stroke (mm) Max. Opening Height (mm) Y1,Y2-axis Down Speed (mm/sec) Y1,Y2-axis Back Stroke Speed (mm/sec) X-axis Max.Distance (mm)  Main Motor (kw)
50T1600 500 1600 1250 205 160 540 230 140 600 4
80T/2500 800 2500 2000 350 170 570 230 140 600 7.5
100T/2500 100 2500 2000 410 200 570 220 140 600 7.5
100T/3200 1000 3200 2700 410 200 570 220 140 600 7.5
100T/4000 1000 4000 3500 410 200 570 220 140 600 7.5
110T/3200 1100 3200 2700 410 200 570 220 140 600 7.5
110T/4000 1100 4000 3500 410 200 570 220 140 600 7.5
125T/3200 1250 3200 2700 410 200 570 200 140 600 11
125T/4000 1250 4000 3500 410 200 570 200 140 600 11
135T/3200 1350 3200 2700 410 200 570 200 140 600 11
135T/4000 1350 4000 3500 410 200 570 200 140 600 11
160T/3200 1600 3200 2700 410 200 570 200 140 600 11
160T/4000 1600 4000 3500 410 200 570 200 140 600 11
160T/5000 1600 5000 4100 410 200 570 160 90 600 11
160T/6000 1600 6000 5100 410 200 570 160 90 600 15
175T/3200 1750 3200 2700 410 200 570 160 140 600 11
175T/4000 1750 4000 3500 410 200 570 160 140 600 11
175T/5000 1600 5000 4100 410 200 570 160 90 600 11
175T/6000 1600 6000 5100 410 200 570 160 90 600 15
200T/3200 2000 3200 2700 410 200 570 160 140 600 15
200T/4000 2000 4000 3500 410 200 570 160 140 600 15
200T/5000 2000 5000 4100 410 200 570 160 90 600 15
200T/6000 2000 6000 5100 410 200 570 160 90 600 15
210T/3200 2100 3200 2700 410 200 570 160 140 600 15
210T/4000 2100 4000 3500 410 200 570 160 140 600 15
210T/5000 2100 5000 4100 410 200 570 130 90 600 15
210T/6000 2100 6000 5100 410 200 570 130 90 600 15
250T/3200 2500 3200 2700 410 250 420 160 140 600 18.5
250T/4000 2500 4000 3500 410 250 620 160 140 600 18.5
250T/5000 2500 5000 4100 410 250 620 130 90 600 18.5
250T/6000 2500 6000 5100 410 250 620 130 90 600 18.5
320T/3200 3200 3200 2700 450 300 670 150 130 600 22
320T/4000 3200 4000 3500 450 300 670 150 130 600 22
320T/5000 3200 5000 4100 450 300 670 130 90 600 22
320T/6000 3200 6000 5100 450 300 670 130 90 600 22
400T/3200 4000 3200 2700 500 300 670 150 130 600 30
400T/4000 4000 4000 3500 500 300 670 150 130 600 30
400T/5000 4000 5000 4100 500 300 670 130 90 600 30
400T/6000 5000 6000 5100 500 300 670 130 90 600 30
500T/4000 5000 4000 3500 500 300 670 150 130 600 30
500T/5000 5000 5000 4100 500 300 670 130 90 600 30
500T/6000 5000 6000 5100 500 300 670 130 90 600 30
