Custom tube bending plays a pivotal role across various industries by offering tailored solutions that meet specific project requirements. Unlike standard tube products, custom bending allows manufacturers and fabricators to achieve precise geometries and configurations essential for diverse applications. Whether in automotive, aerospace, or architectural sectors, the ability to customize tube shapes enhances functionality, aesthetics, and operational efficiency.
Table of contents
I.Tube BendingTypes of Materials Suitable for Custom Tube Bending
II.Tube Bending Design Considerations and Constraints
III. Methods and Techniques of Tube Bending
IV. Equipment and Tools for Custom Tube Bending
V. Tube Bending Quality Control and Precision
I.Tube BendingTypes of Materials Suitable for Custom Tube Bending
Material Selection
Custom tube bending accommodates a wide range of materials, including steel, aluminum, copper, and alloys. Each material brings distinct properties that influence bending feasibility and performance. For instance, steel offers strength and durability, while aluminum provides lightweight versatility. Selecting the right material involves considering factors like corrosion resistance, conductivity, and structural integrity tailored to the project's functional requirements.
II.Tube Bending Design Considerations and Constraints
Factors Influencing Design
Successful custom tube bending begins with meticulous design considerations. Factors such as tube diameter, wall thickness, and bend radius significantly impact feasibility and quality. Complex geometries and tight tolerances require careful planning to ensure bending capabilities align with design intent. Collaboration between designers and bending specialists is crucial to navigate constraints and optimize designs for manufacturing feasibility.
III. Methods and Techniques of Tube Bending
Bending Techniques
Various techniques are employed in custom tube bending to achieve desired shapes and dimensions:
- Mandrel Bending: Supports tube interior during bending to prevent collapse and maintain shape integrity.
- Rotary Draw Bending: Uses dies and a rotating mandrel to produce precise bends with minimal distortion.
- Compression Bending: Applies force to deform the tube around a fixed bend die, suitable for simpler bends and larger radii.
Each technique offers distinct advantages depending on material properties, bend complexity, and production volume, ensuring flexibility in meeting diverse project requirements.
IV. Equipment and Tools for Custom Tube Bending
Specialized Equipment
Custom tube bending relies on advanced machinery tailored to specific bending techniques:

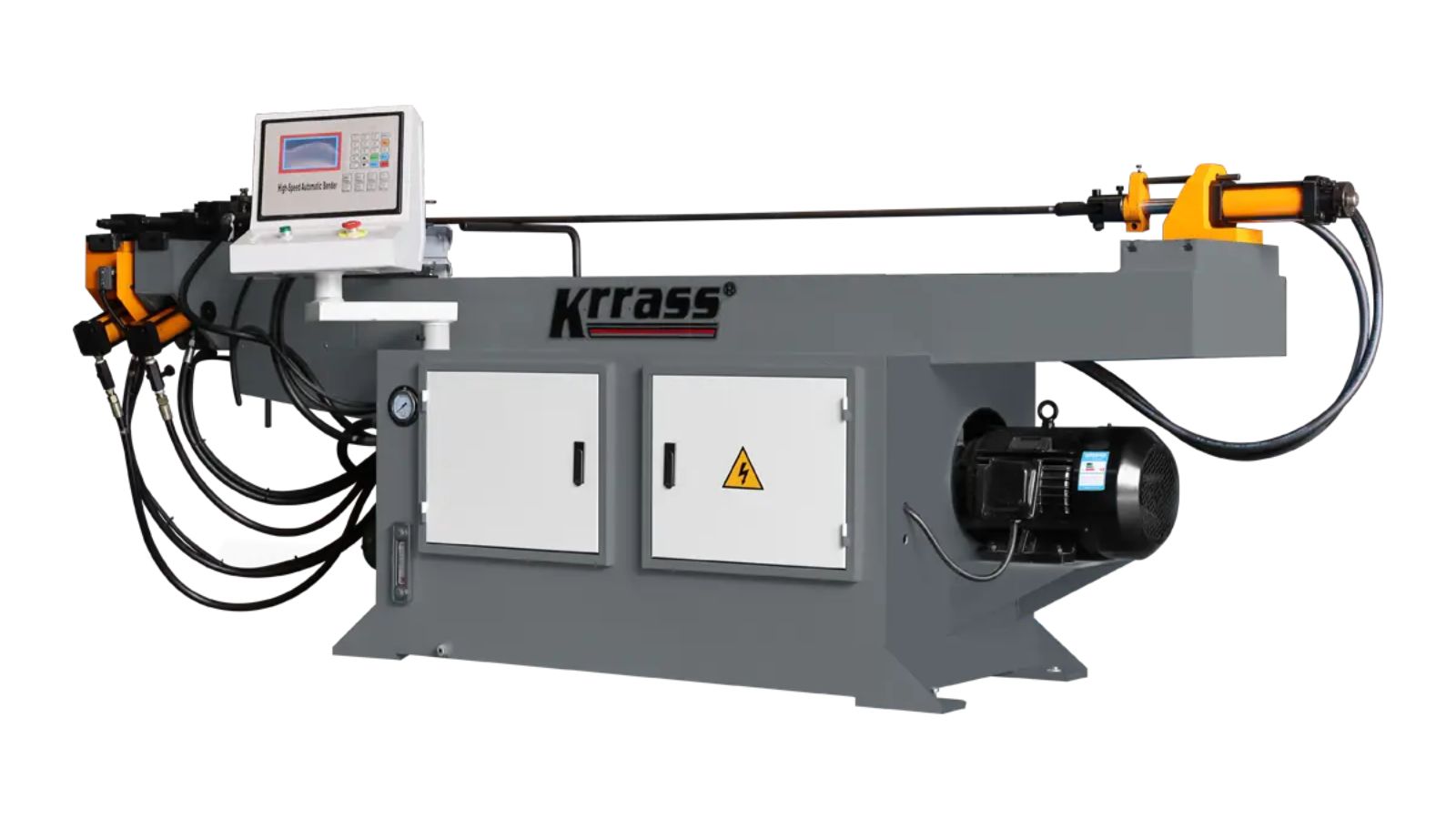

- CNC Bending Machines: Programmable for high precision and repeatability across large production runs.
- Mandrels and Dies: Essential for maintaining tube shape and quality during bending.
- Tooling and Fixtures: Customized tools ensure consistent bend profiles and minimize setup times.
The choice of equipment directly influences production efficiency, quality control, and the ability to meet stringent project specifications.
V. Tube Bending Quality Control and Precision
Ensuring Quality
Quality control measures are integral to maintaining consistency and accuracy in custom tube bending:
- Dimensional Inspection: Verifies bend angles, radii, and tolerances against design specifications.
- Wall Thickness Monitoring: Ensures uniformity to prevent material thinning or structural compromise.
- Surface Finish Evaluation: Addresses cosmetic requirements and surface imperfections.
Rigorous quality assurance protocols mitigate production risks, uphold product integrity, and validate compliance with industry standards.
VI.Conclusion
This guide provides some information about custom tube bending. To learn about Tube Bending Machine, click here. KRRASS will be at your service.
