KRRASS High Standard Fixed Angle Notching Machine

Fixed Angle Notching Machine

Certificates For Banner

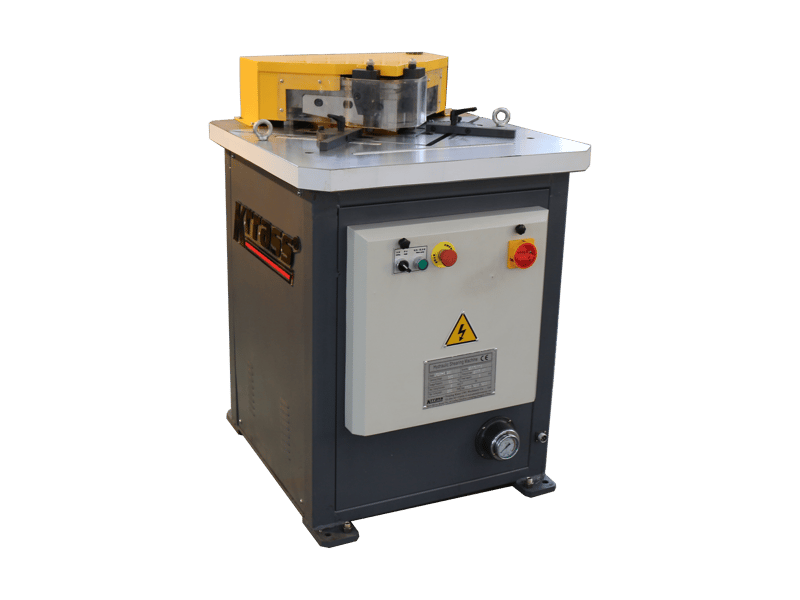

High Standard Fixed Angle Notching Machine

Our hydraulic fixed angle notching is a fixed and angle adjustment notching machine. It has a strong and durable body structure and a steel-construction table. The machine allows precise and quick adjustment of the desired cutting angle within 30 to 140 degrees with the help of a function mounted on the machine table. This machine is machined with T-slots on the top surface, which can be used to precisely adjust the angle and depth of the cut corners. Automatic cutting gap adjustment can be adjusted according to the type and thickness of the material, thus providing high cutting quality and precision.

KRRASS High Standard Fixed Angle Notching Machine
Fixed Angle Notching Machine - square blank shearing

Standard Manual Drop-End

Fixed Angle Notching Machine - shears manufacturers

Optional Control Panel with digital read-out

Fixed Angle Notching Machine - guillotine shears models

Tailored-made Notching Machine

General Features

  • The biggest notcher size is 250x250 mm

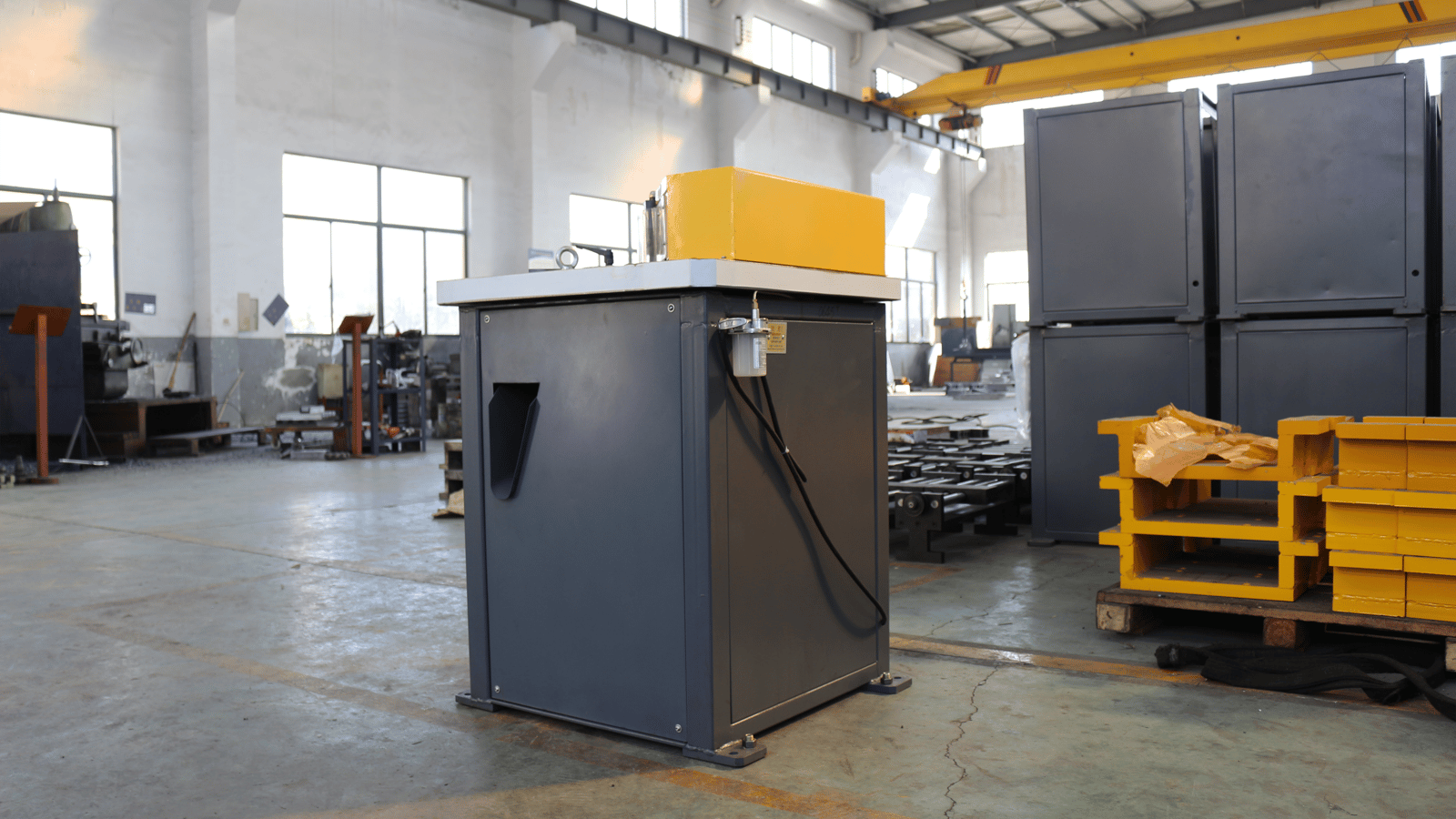

  • QF28Y variable rake hydraulic corner notchers have a strong frame with is statically and dynamically rigid steel table and top beam material

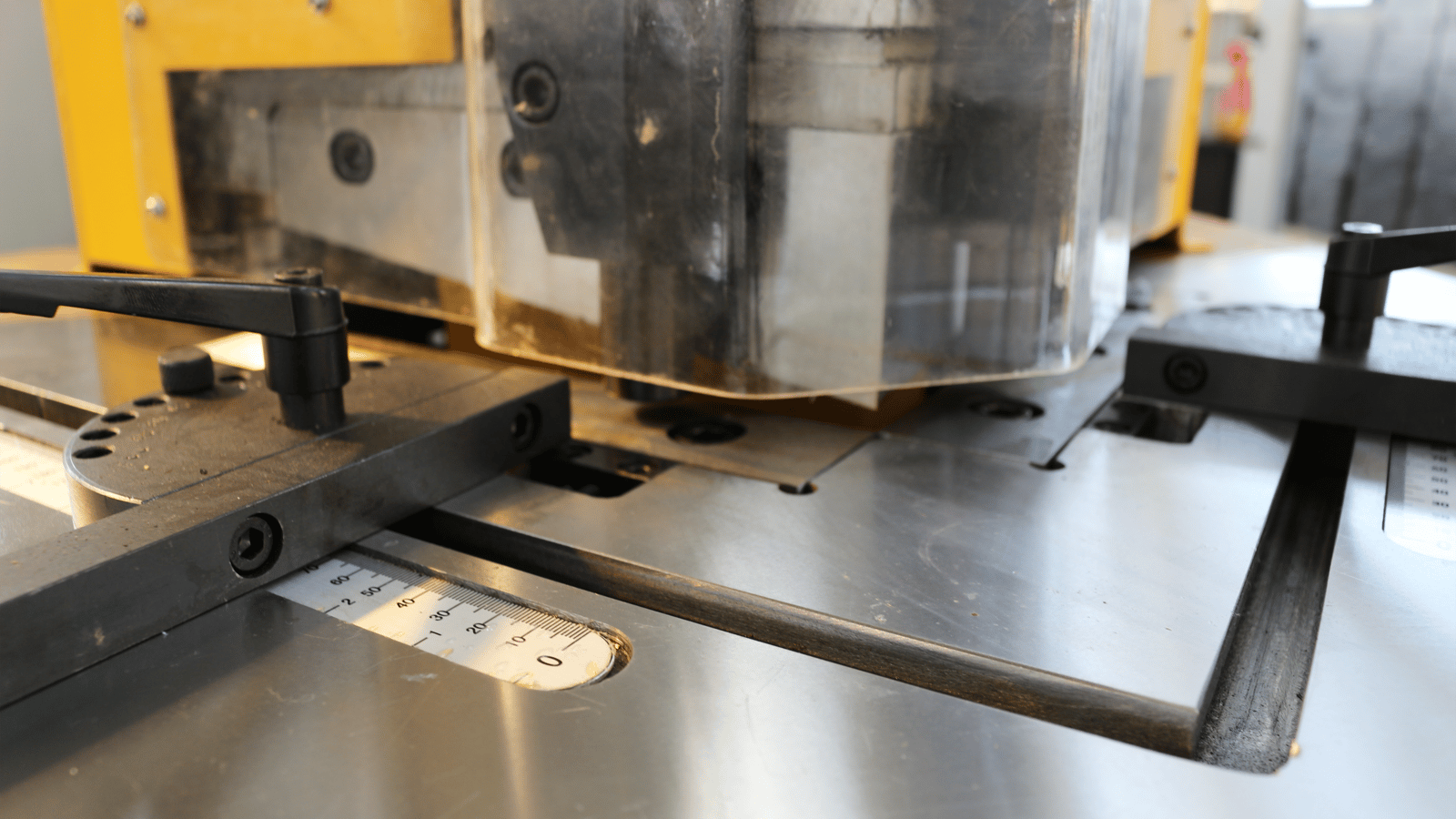

  • The hydraulic notcher has compact structure, small volume and convenient operation
  • The QF28Y Hydraulic notcher can cut up to 6 mm
  • The notching angle fixes in 90° with high notching speed

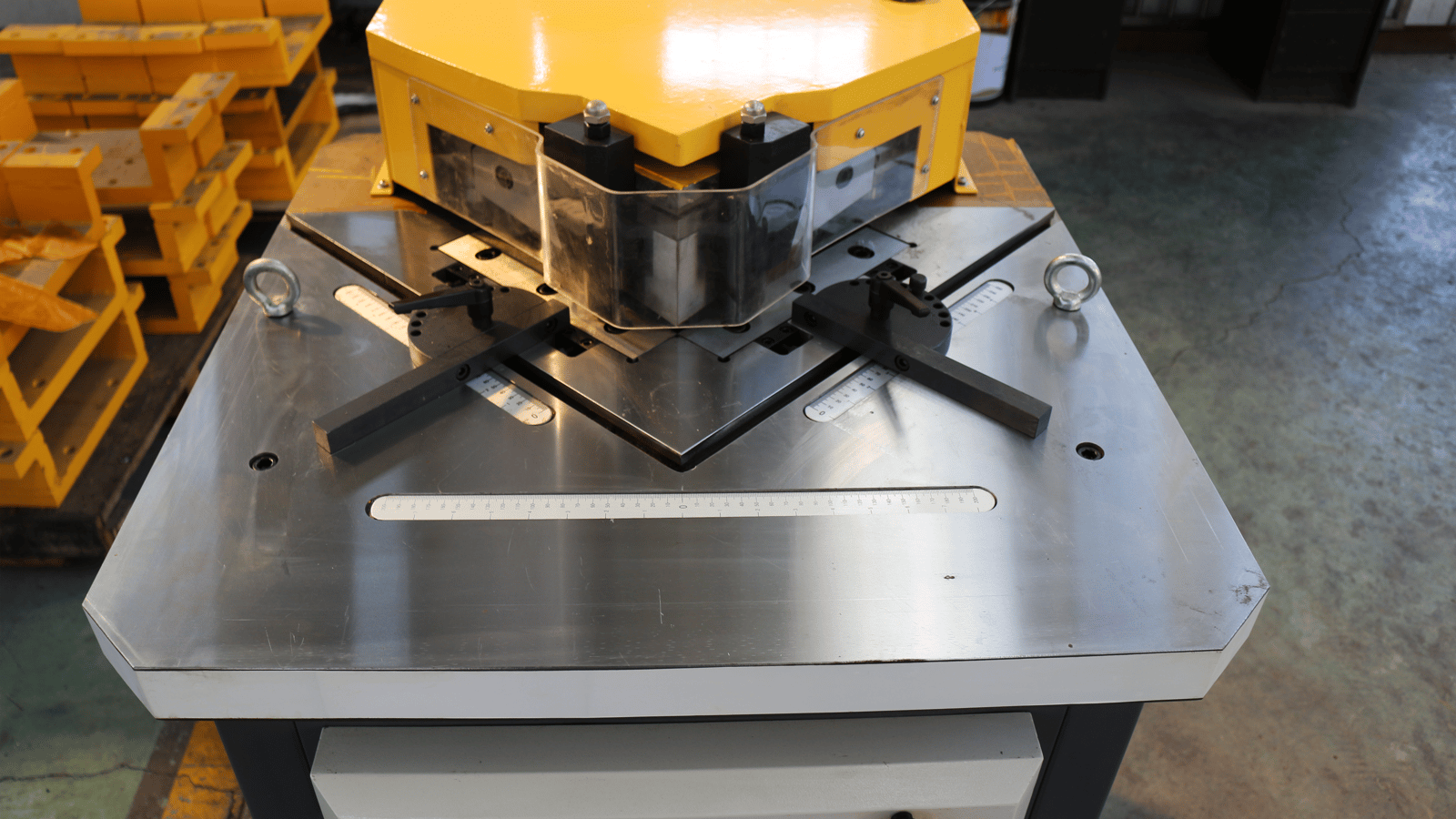

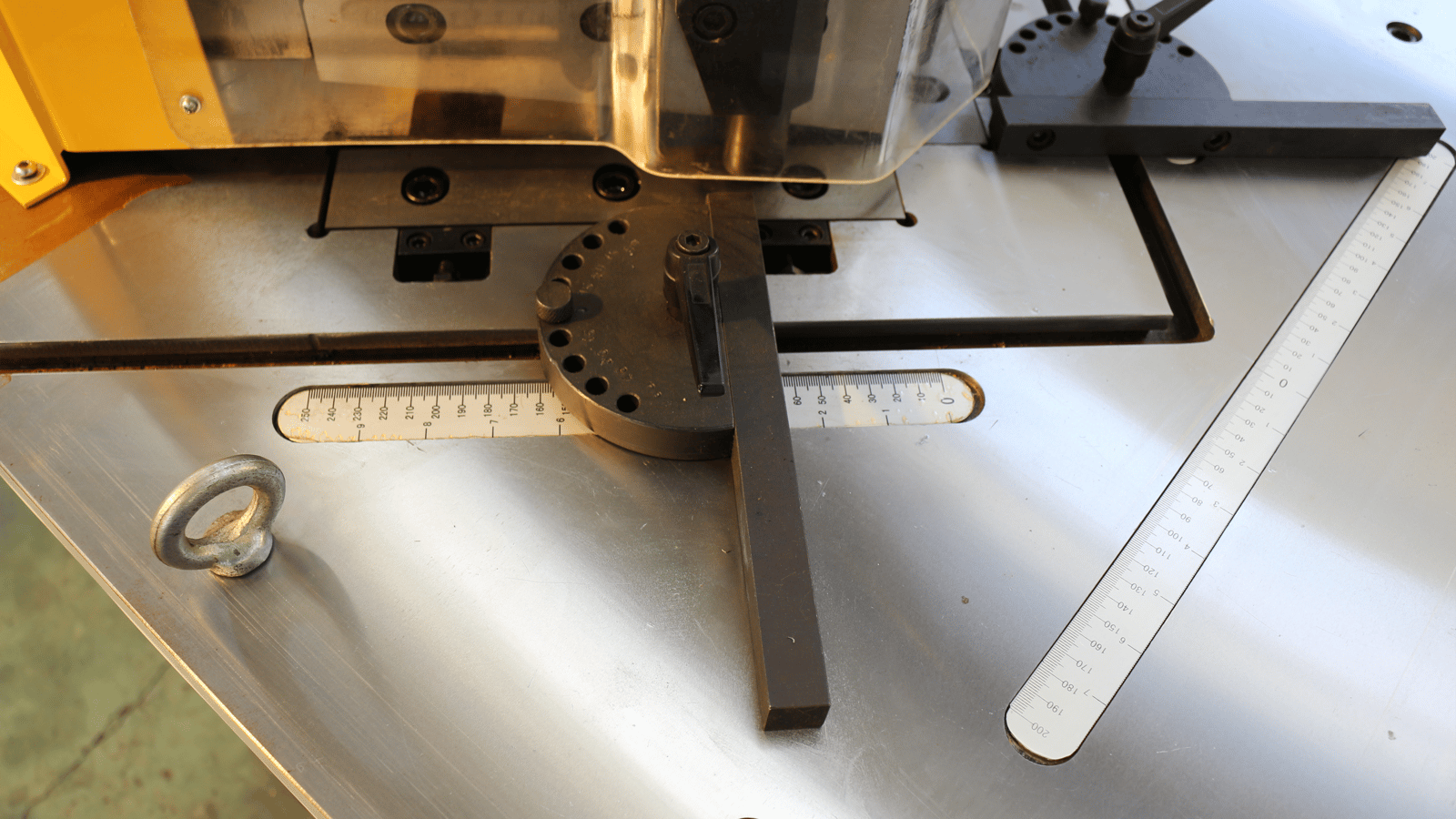

  • T slot top table realizes precise cuttings and there is no need for alignment for different sheet thicknesses by means of automatic blade gap adjustment
  • QF28Y series perform frequent cutting repeatability via 4 hydraulic hold-down cylinders
  • Optional Equipment: Automatic feeding system

Technical Parameter

Model Max.Plate Thickness (mm) Max.Plate Length (mm) Cutting Angle Range (°) Travel Times (N/min) Worktable Height (mm) Motor Power (KW) Outline Dimensions (mm) Weithe (kg)
CS SS L W H
4X250 0.5-4 0.5-2 250 90° 35 850 4 910 760 1050 680
6X250 0.5-6 0.5-3 250 90° 35 850 4 910 810 1050 710
