In the realm of metalworking, precision and accuracy are paramount. Whether it's for creating intricate designs or ensuring robust structural components, the right tools make all the difference. Among these tools, the manual press brake stands out as a cost-effective and versatile solution. This article delves into the world of manual press brakes, highlighting their benefits, features, applications, and more.
Introduction
Central to metalworking is the use of press brakes, machines designed to bend sheet metal with precision. These tools are indispensable in metal fabrication, enabling the creation of parts such as brackets, frames, enclosures, and panels. By making precise bends in metal sheets, press brakes facilitate the production of complex and functional components essential for both large-scale manufacturing and custom fabrication projects.
Among the various types of press brakes, the manual press brake stands out for its cost-effectiveness and versatility. Unlike hydraulic or CNC press brakes that utilize automated systems and hydraulic power, a manual press brake operates through manual effort, giving operators direct control over the bending process. This simplicity not only makes manual press brakes more affordable but also easier to maintain and operate, especially for small to medium-sized businesses, hobbyists, and workshops.
Despite their straightforward design, manual press brakes provide a high degree of precision and flexibility, capable of handling a wide range of metal bending tasks efficiently. Their affordability and user-friendly nature make them an attractive option for those new to metalworking or those who do not require the high-volume production capabilities of automated systems.
What Is A Manual Press Brake
Definition and Basic Working Principle

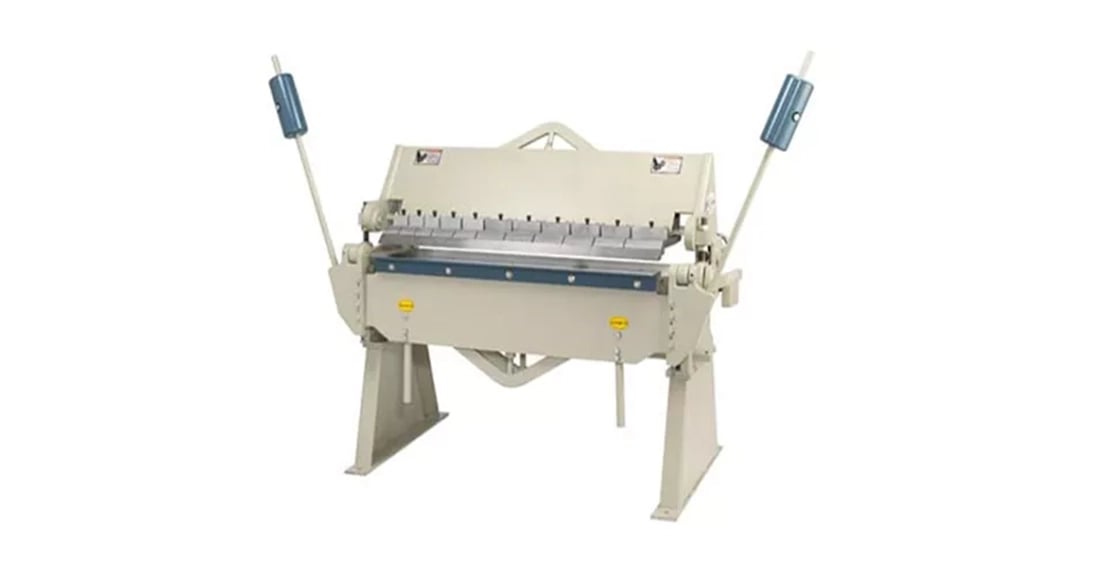

A manual press brake is a type of machine used in metalworking to bend sheet metal into specific shapes and angles. Unlike hydraulic or CNC (Computer Numerical Control) press brakes, which use automated systems to control the bending process, a manual press brake operates entirely through the physical effort of the operator. The basic working principle involves placing the metal sheet on a flat surface, securing it with a clamping bar, and then using a lever or handle to apply pressure to bend the metal to the desired angle. This hands-on approach allows for precise control over the bending process, making it an ideal tool for smaller projects and custom work.
Manual Press Brake vs Hydraulic and CNC Press Brake
Hydraulic Press Brakes:
- Automation and Power: Hydraulic press brakes use hydraulic fluid to generate pressure, which powers the bending process. This allows for more forceful and consistent bending, suitable for thicker and tougher metals.
- Precision and Speed: These machines often include computerized controls that enable precise adjustments and faster production times.
- Cost and Maintenance: Hydraulic systems are more expensive and require more maintenance compared to manual press brakes due to their complex components and reliance on hydraulic fluids.
CNC Press Brakes:
- Advanced Technology: CNC press brakes are equipped with computer controls that automate the bending process. Operators can program the desired bend angles, positions, and sequences, resulting in high precision and repeatability.
- Efficiency and Versatility: These machines are highly efficient, capable of handling large production runs with minimal operator intervention. They can also store multiple programs for different projects.
- Investment and Complexity: CNC press brakes are the most expensive option and require skilled operators to manage the programming and maintenance of the equipment.
Manual Press Brakes:
- Simplicity and Control: Manual press brakes are straightforward machines that rely on the operator’s skill and physical effort. They provide direct control over the bending process, allowing for adjustments on the fly.
- Affordability and Low Maintenance: These machines are the most affordable option and have fewer moving parts, resulting in lower maintenance needs and costs.
- Suitability: Ideal for small to medium-sized businesses, workshops, and hobbyists who need precise bends without the need for high-volume production.
More content about types of press brake classification, pls click here.
Key Components of Manual Press Brake
- Flat Surface/Table: This is where the metal sheet is placed. It needs to be sturdy and flat to ensure accurate bending.
- Clamping Bar: A bar that secures the metal sheet in place, preventing movement during the bending process. The clamping bar ensures that the bend is made precisely at the desired location.
- Lever or Handle: The manual control that the operator uses to apply pressure and bend the metal sheet. The leverage provided by the handle allows the operator to exert sufficient force to create the bend.
- Bending Die: The tool that shapes the metal as it is pressed against it. Different dies can be used to achieve various bending angles and shapes.
- Angle Gauge: An optional component that helps the operator measure and achieve the precise angle of the bend. This can be particularly useful for ensuring consistency in repetitive tasks.
- Back Gauge: Another optional feature that helps position the metal sheet accurately for bends at specific points, enhancing precision and efficiency.
Benefits of Using a Manual Press Brake
Manual press brakes offer several advantages over other types of press brakes, making them a preferred choice for many metalworking applications：
Cost-effectiveness and Affordability for Small to Medium-sized Businesses
- Initial Investment: One of the most significant advantages of manual press brakes is their affordability. Compared to hydraulic or CNC press brakes, which require substantial upfront investment, manual press brakes are much more budget-friendly. This makes them accessible to small to medium-sized businesses with limited financial resources.
- Operating Costs: In addition to the lower initial cost, manual press brakes also have lower operating costs. They do not require electricity to operate, saving on utility bills. Moreover, maintenance costs are minimal due to the simplicity of the machine, further reducing overall expenses.
Precision and Control in Bending Operations
- Direct Operator Control: Manual press brakes offer operators direct control over the bending process. The operator can make real-time adjustments to achieve precise bends according to the desired specifications. This hands-on approach ensures greater accuracy and consistency in the final product.
- Customization: The ability to control every aspect of the bending operation allows for greater customization. Operators can accommodate unique design requirements and create complex shapes with ease. This flexibility is especially valuable for small batch production and custom fabrication projects.
Simplicity and Ease of Use
- User-friendly Design: Manual press brakes are designed with simplicity in mind, making them easy to learn and operate, even for beginners. The absence of complex electronic controls and programming simplifies the setup and reduces the learning curve. This makes manual press brakes an ideal choice for small workshops or businesses with limited training resources.
- Quick Setup: With fewer components and no need for programming, manual press brakes can be set up and ready for use in a matter of minutes. Operators can focus on the task at hand without spending excessive time on machine setup and calibration.
Low Maintenance Requirements
- Minimal Moving Parts: Manual press brakes have a simple mechanical design with minimal moving parts. This reduces the likelihood of breakdowns and maintenance issues, resulting in fewer repairs and downtime. Routine maintenance tasks, such as lubrication and inspection, are straightforward and can be easily performed by operators without specialized training.
- Longevity: Due to their robust construction and low-maintenance nature, manual press brakes are known for their durability and longevity. With proper care and regular maintenance, these machines can provide reliable performance for many years, offering a high return on investment for businesses of all sizes.

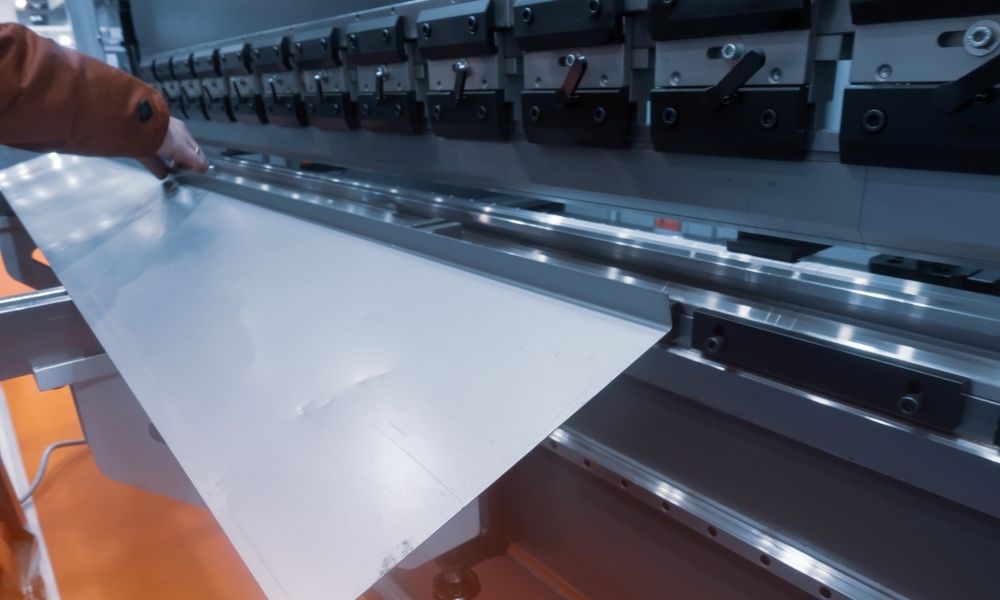

Shortcomes of Munual Press Brake
Manual press brakes, while still useful in certain applications, have several shortcomings compared to their CNC (Computer Numerical Control) counterparts:
- Limited Precision: Manual press brakes rely heavily on the operator's skill and experience for accuracy. Achieving consistent bends can be challenging, especially for complex shapes or tight tolerances.
- Slower Setup: Setting up a manual press brake for each bend requires manual adjustment of various parameters such as bend angle, back gauge position, and tooling. This process can be time-consuming and prone to errors.
- Higher Risk of Operator Error: Since manual press brakes lack automated controls, there's a higher risk of operator error leading to scrapped parts, rework, or safety hazards.
- Limited Automation: Manual press brakes do not offer the same level of automation as CNC press brakes. Tasks such as multi-step bending sequences or batch processing require manual intervention, reducing efficiency.
- Lower Productivity: The manual operation of press brakes means slower production speeds compared to CNC counterparts, which can impact overall productivity, especially in high-volume manufacturing environments.
- Safety Concerns: Manual press brakes may pose higher safety risks due to the increased reliance on operator skill and attentiveness. Without the safety features of CNC machines, there's a greater chance of accidents or injuries.
- Limited Versatility: CNC press brakes offer a wider range of capabilities, including the ability to handle complex geometries, advanced tooling options, and integration with CAD/CAM software for programming and design optimization. Manual press brakes are limited in these regards.
- Dependency on Operator Skill: Manual press brakes require skilled operators to achieve quality bends consistently. Training new operators can take time and may result in inconsistencies until proficiency is attained.
In summary, while manual press brakes can still be useful for certain applications, they are generally less precise, less efficient, and less versatile compared to CNC press brakes.
Manual vs. CNC Controller: How To Choose
Although manual manual press brakes have advantages in certain specific scenarios, CNC press brake machines have gradually become the mainstream of the market. When considering choosing a manual or CNC bending machine, it is essentially a choice of system.
When it comes to hydraulic press brake control systems, fabricators often find themselves at a crossroads, deliberating between manual and CNC options. Manual control systems, steeped in tradition, offer artisans a hands-on approach to bending operations, enabling adaptability and versatility in custom fabrication projects. On the other hand, CNC control systems represent the pinnacle of precision and automation, revolutionizing production workflows with programmable sequences and real-time feedback mechanisms.
Manual Hydraulic Press Brake Control Systems
Manual hydraulic press brake control systems rely on human intervention for operation. Operators manually adjust parameters such as bending angle, back gauge position, and ram stroke using mechanical levers, knobs, or handwheels. While manual control systems offer simplicity and ease of use, they have certain limitations in terms of precision and efficiency. Manual hydraulic press brakes may be suitable for small-scale operations or applications where flexibility and quick setup are prioritized. These systems usually offer a more affordable initial cost and demand minimal training for operators. However, they may not offer the same level of accuracy and repeatability as CNC systems, particularly for complex bending tasks or high-volume production.

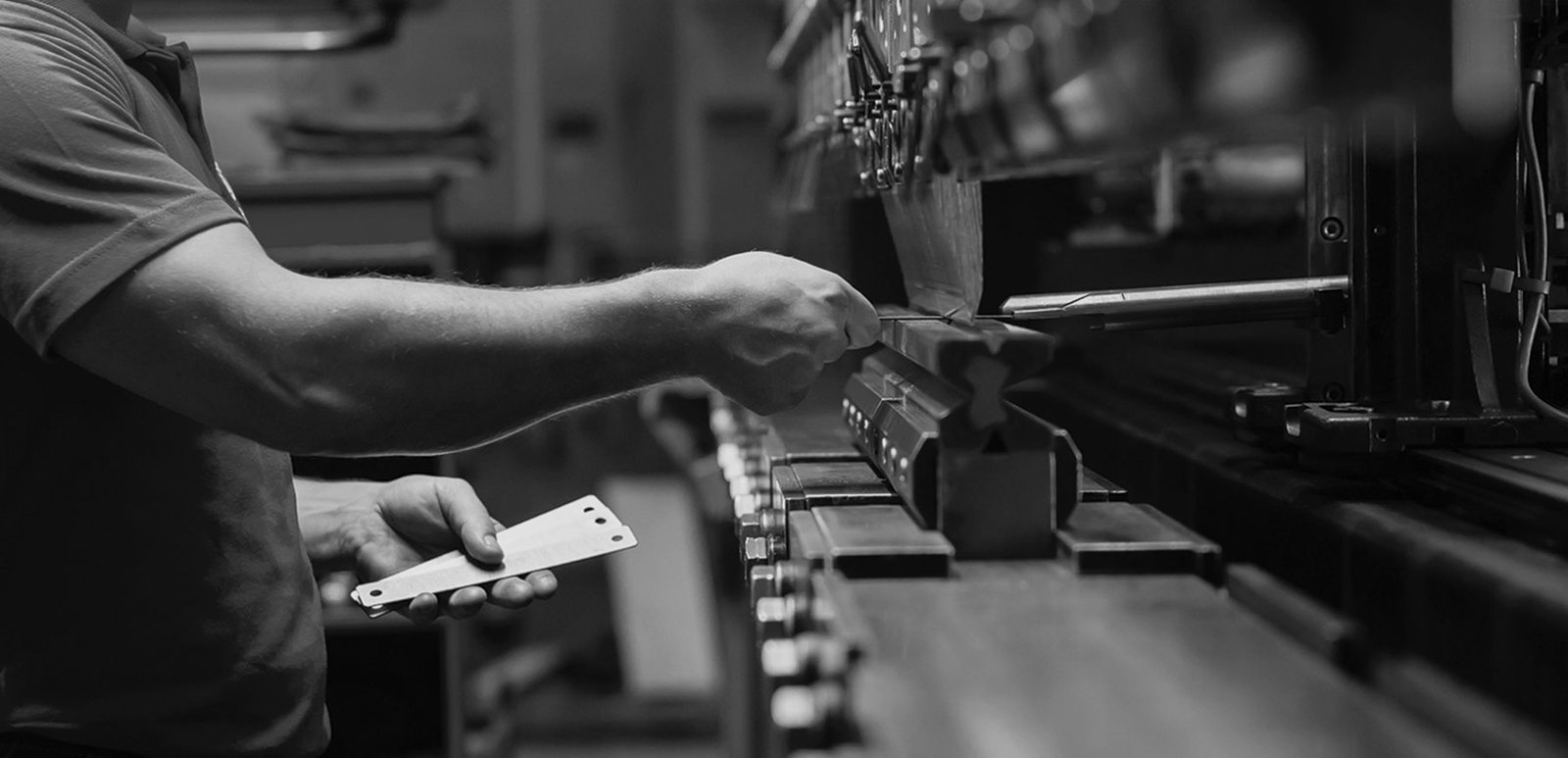

CNC Hydraulic Press Brake Control Systems
CNC hydraulic press brake control systems represent the pinnacle of automation and precision in metal bending. These systems utilize computerized controls to precisely regulate parameters such as bending angle, bend depth, and back gauge position with unparalleled accuracy. Operators input bending programs into the CNC system, which then executes the desired sequences automatically. In the metalworking, where precision and efficiency are paramount, CNC hydraulic press brakes are favoured by businesses seeking to optimize their production processes.
The following video shows the operation of the hydraulic CNC bending machine under the E310 CNC control system
Advantages of CNC System
- Precision and repeatability: CNC control systems guarantee consistent bending outcomes, even for intricate geometries or narrow tolerances. This degree of precision is especially crucial in industries like aerospace, automotive, and electronics, where component quality is paramount.
- Efficiency and Productivity: By automating bending sequences, CNC control systems reduce setup times and increase throughput, leading to higher productivity levels. This efficiency gain is essential for meeting tight deadlines and fulfilling large orders in the competitive UAE market.
- Versatility and Flexibility: CNC hydraulic press brakes allow for the creation and storage of multiple bending programs, enabling quick changeovers between different job setups. This versatility is beneficial for businesses catering to diverse customer requirements and product specifications.
- Integration with CAD/CAM Software: Many CNC hydraulic press brakes in UAE are compatible with CAD/CAM software, allowing for seamless transfer of part designs and bending programs. This integration streamlines the production workflow and minimizes programming errors, resulting in faster turnaround times and improved accuracy.
Choosing the Right Option for Your Business
When deciding between manual and CNC hydraulic press brakes, businesses in the UAE must consider their specific requirements, budget constraints, and long-term objectives. While manual systems offer simplicity and affordability, CNC systems provide unmatched precision, efficiency, and versatility.
For small-scale operations or applications with low production volumes, a manual hydraulic press brake may suffice, offering a cost-effective solution with minimal complexity. However, as business demands grow or requirements for precision increase, investing in CNC hydraulic press brakes becomes increasingly advantageous, enabling businesses to unlock greater productivity and competitiveness in the metalwork industry.
In the dynamic manufacturing landscape of the globle market, the choice between manual and CNC hydraulic press brakes is a critical decision that can impact the efficiency, quality, and competitiveness of metal fabrication businesses. While manual systems offer simplicity and affordability, CNC systems deliver unmatched precision, efficiency, and versatility, making them the preferred choice for many businesses seeking to optimize their production processes and stay ahead in the competitive market.
More CNC controller information, pls click here to read.
Key Features to Look for in a Manual Press Brake
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Sturdy Construction and Durable Materials
- Frame and Build Quality: Look for a press brake with a robust, heavy-duty frame made from high-quality steel or cast iron. This ensures the machine can withstand high stress and long-term use without deforming or losing accuracy.
- Welds and Joints: Inspect the welds and joints to ensure they are clean and strong. Poor welding can compromise the machine’s structural integrity.
- Components: Durable materials for components like the bending beam, clamping mechanisms, and adjustment knobs are essential. Hardened steel is often preferred for these parts due to its resistance to wear and tear.
Adjustable Bending Radius and Angles
- Bending Angle Adjustment: Ensure the press brake allows for precise adjustment of bending angles. This feature is crucial for achieving the desired bend accuracy and repeatability.
- Radius Control: The ability to adjust the bending radius is important for creating bends with different curvatures. Look for machines with adjustable radius tools or accessories.
- Back Gauge: A reliable and adjustable back gauge helps in achieving consistent bends by positioning the metal accurately before bending.
Capacity and Size Considerations
- Tonnage Capacity: The press brake should have adequate tonnage capacity for the types of materials and thicknesses you intend to work with. Overloading a press brake can cause damage and compromise safety.
- Working Length: Consider the maximum working length of the machine. It should match the size of the sheets you plan to bend.
- Bed Width and Throat Depth: The bed width and throat depth determine the size and shape of the materials you can bend. Ensure these dimensions accommodate your typical projects.
Safety Features and Ease of Operation
- Safety Guards: Look for safety guards that protect the operator from moving parts. These can include physical barriers, safety interlocks, and emergency stop buttons.
- Ergonomics: The machine should be designed for ease of use, with controls that are accessible and intuitive. Ergonomic handles and foot pedals can reduce operator fatigue.
- Manuals and Indicators: Clear markings, user manuals, and angle indicators enhance ease of operation and accuracy.
- Hydraulic vs. Mechanical Systems: While manual press brakes are often mechanical, some may include hydraulic assist for easier operation and better control, which can also enhance safety.
Additional Considerations
- Brand Reputation and Support: Choose a reputable brand known for quality and customer support. Availability of spare parts and technical support is crucial for long-term maintenance.
- Portability: If you need to move the press brake frequently, consider its weight and whether it has features like wheels or handles for easier transportation.
Common Applications of Manual Press Brakes
Custom Metal Fabrication and Prototyping
- Bespoke Components: Manual press brakes are ideal for creating custom metal parts tailored to specific needs. This is crucial in industries requiring unique components that are not available off-the-shelf.
- Prototyping: They are widely used for developing prototypes, allowing designers and engineers to test and refine new product designs quickly and cost-effectively.
Small Batch Production and On-Demand Manufacturing
- Flexibility: Manual press brakes are perfect for small-scale production runs where flexibility and quick setup changes are essential. This allows manufacturers to respond rapidly to customer demands and market changes.
- Cost-Efficiency: For small batch production, manual press brakes are more economical compared to automated systems, reducing overhead costs while maintaining production quality.
Repair and Maintenance Tasks in Various Industries
- Industrial Repairs: In industries such as automotive, aerospace, and heavy machinery, manual press brakes are used for repairing and fabricating parts, ensuring machinery downtime is minimized.
- Maintenance Work: They are also employed for maintenance tasks, such as creating brackets, supports, and other necessary components for equipment upkeep.
Artistic and Creative Metalworking Projects
- Metal Art and Sculpture: Artists and metalworkers use manual press brakes to bend and shape metal into creative and intricate designs, enabling the production of unique sculptures and installations.
- Custom Furniture and Decor: They are also popular in the creation of custom metal furniture, fixtures, and decorative items, allowing for precise bends and unique designs.
Additional Applications
- Educational and Training: Manual press brakes are commonly found in educational institutions for training students in metalworking techniques and principles.
- Agricultural Equipment: In the agricultural sector, they are used to fabricate and repair parts for farming equipment, enhancing productivity and reducing downtime.
- HVAC Ductwork: They are also used in the HVAC industry to create and modify ductwork, ensuring precise bends and fits for efficient air flow systems.
it's clear that manual press brakes play a versatile and vital role in various fields, providing precision, flexibility, and cost-effectiveness for a wide range of metalworking tasks.
How to Operate a Manual Press Brake Safely
Step-by-Step Guide on Setting Up and Operating the Machine
1. Preparation and Setup:
- Read the Manual: Start by thoroughly reading the machine’s user manual to understand all controls, settings, and safety features.
- Inspect the Machine: Conduct a pre-use inspection to check for signs of wear, damage, or malfunction. Ensure all safety guards and devices are in place and functioning properly.
- Clear the Workspace: Ensure the area around the press brake is clean and free of obstructions. Remove unnecessary tools and materials.
- Wear PPE: Equip yourself with appropriate personal protective equipment (PPE) including safety glasses, gloves, steel-toed boots, and hearing protection.
2. Material Handling:
- Position the Material: Securely place the metal sheet on the press brake. Use clamps or supports if necessary to keep the material stable.
- Check Alignment: Ensure the material is properly aligned with the bending line to achieve accurate bends.
3. Adjust Settings:
- Set Bending Angle and Radius: Adjust the machine to the desired bending angle and radius using the adjustment controls.
- Position the Back Gauge: Set the back gauge correctly for the specific bend you intend to achieve.
4. Begin Operation:
- Engage Safety Guards: Ensure all safety guards and barriers are engaged to protect from moving parts.
- Operate Slowly and Steadily: Begin the bending process slowly and steadily to avoid sudden movements that could cause accidents or material misalignment.
- Monitor the Process: Keep an eye on the bending process, ensuring hands and other body parts are clear of moving parts and pinch points.
- Use Both Hands: If manual force is required, use both hands to operate the machine evenly and maintain control.
5. Post-Operation:
- Release Pressure: Gradually release any pressure or tension after completing the bend to avoid sudden movements or material spring-back.
- Remove Material: Carefully remove the bent material from the machine, ensuring it does not fall or shift unexpectedly.
- Turn Off the Machine: After completing your task, turn off the press brake and disconnect the power if necessary.
Safety Precautions and Protective Gear
- Personal Protective Equipment (PPE): Always wear safety glasses, gloves, steel-toed boots, and hearing protection.
- Machine Guards: Ensure all machine guards are in place and operational.
- Emergency Stops: Familiarize yourself with the location and operation of emergency stop buttons.
- Focus and Alertness: Avoid distractions and stay focused on the task. Never operate the machine under the influence of drugs or alcohol.
- Proper Training: Ensure all operators are trained in safe operation procedures.
Regular Maintenance Tips to Ensure Longevity and Performance
- Lubrication: Regularly lubricate moving parts as per the manufacturer’s guidelines to ensure smooth operation and reduce wear.
- Check Fasteners: Periodically check and tighten all bolts and fasteners to maintain machine stability.
- Inspect Components: Regularly inspect components like the bending beam, clamping mechanisms, and adjustment knobs for wear and damage.
- Cleanliness: Keep the machine and surrounding area clean. Remove metal shavings and debris that can cause damage or hinder operation.
- Replace Worn Parts: Promptly replace any worn or damaged parts to prevent further damage and ensure safety.
- Record Maintenance: Maintain a log of all maintenance activities, inspections, and repairs to track the machine’s condition and performance.
Maintenance and Troubleshooting Tips
Maintenance Tips
Regular Cleaning:
- Daily Cleaning: Wipe down the press brake daily to remove dust, dirt, and metal shavings.
- Thorough Cleaning: Periodically perform a more thorough cleaning, including the removal of any buildup on moving parts and surfaces.
Lubrication:
- Lubricate Moving Parts: Apply appropriate lubricants to all moving parts, including the ram, guides, and hinges, according to the manufacturer’s specifications.
- Oil Change: For hydraulic models, regularly check and replace the hydraulic oil.
Inspection:
- Visual Inspection: Perform daily visual inspections to check for signs of wear, damage, or misalignment.
- Detailed Inspection: Regularly check the condition of critical components such as the ram, tooling, and back gauge for cracks, wear, or misalignment.
Alignment and Calibration:
- Check Alignment: Ensure the ram and bed are correctly aligned to prevent uneven bends and damage to the machine.
- Calibration: Periodically calibrate the press brake to ensure it is producing accurate bends.
Tooling Maintenance:
- Tool Storage: Store tooling properly when not in use to prevent damage and corrosion.
- Tool Condition: Inspect tooling for wear and damage; replace worn or damaged tools to maintain precision.
Safety Systems:
- Check Safety Devices: Regularly test safety devices, such as emergency stop buttons and guards, to ensure they are functioning correctly.
Troubleshooting Tips
Inconsistent Bends:
- Check Tooling: Ensure tooling is correctly seated and not worn out.
- Material Issues: Verify the material being used is consistent in thickness and type.
- Alignment: Check and adjust the machine's alignment as needed.
Machine Not Starting:
- Power Supply: Verify the power supply and connections are secure.
- Safety Interlocks: Ensure all safety interlocks and guards are in place and functioning.
- Fuses and Breakers: Check for blown fuses or tripped breakers and replace or reset as necessary.
Hydraulic Issues (if applicable):
- Oil Levels: Check the hydraulic oil levels and top up if necessary.
- Leaks: Inspect for any hydraulic leaks and tighten or replace fittings as needed.
- Pump Issues: Listen for unusual noises from the hydraulic pump, which may indicate wear or air in the system.
Mechanical Issues:
- Ram Movement: If the ram is not moving smoothly, check for obstructions, misalignment, or lack of lubrication.
- Back Gauge Problems: If the back gauge is not moving correctly, inspect the guide rails and screws for wear or obstructions.
Unusual Noises:
- Identify Source: Locate the source of the noise, which could indicate a loose part, lack of lubrication, or worn component.
- Immediate Action: Stop using the machine and address the issue to prevent further damage.
Overloading:
- Check Capacity: Ensure the press brake is not being used to bend material beyond its capacity, as this can cause serious damage.
- Proper Use: Educate operators on the correct use of the press brake, including load limits and proper handling techniques.
Case Studies
Case Study 1: Small Manufacturing Company
Company: Precision Metalworks
Location: Midwest, USA
Industry: Custom Metal Fabrication
Background:
Precision Metalworks, a small manufacturing company specializing in custom metal fabrication, used a manual press brake to produce small batches of custom metal parts. The company selected a manual press brake for its cost-effectiveness and flexibility, allowing them to handle a variety of projects without significant investment in automated machinery.
Challenges:
- Variety of Projects: The company needed to produce a wide range of parts with different shapes and sizes.
- Skilled Labor: The operation of a manual press brake required skilled operators capable of performing precise bends.
Solution:
- Operator Training: Precision Metalworks invested in comprehensive training for its operators, ensuring they were proficient in using the manual press brake for various projects.
- Regular Maintenance: The company implemented a strict maintenance schedule to ensure the press brake remained in optimal working condition, minimizing downtime and ensuring consistent product quality.
Outcome:
- Increased Flexibility: The manual press brake allowed the company to quickly switch between different projects, meeting customer demands effectively.
- Cost Savings: The initial investment in a manual press brake was significantly lower than automated alternatives, and the company saved on maintenance costs due to the simplicity of the machine.
- Enhanced Quality: With skilled operators and regular maintenance, Precision Metalworks consistently produced high-quality parts, strengthening their reputation in the market.
Case Study 2: Educational Institution
Institution: Technical Training Institute
Location: Southeast Asia
Industry: Vocational Training
Background:
The Technical Training Institute integrated manual press brakes into their curriculum to provide hands-on training for students in metalworking and fabrication. This approach aimed to equip students with practical skills highly valued in the manufacturing industry.
Challenges:
- Student Proficiency: Students had varying levels of experience and required guidance to use the manual press brake effectively.
- Machine Durability: Frequent use by inexperienced operators could lead to increased wear and potential damage to the equipment.
Solution:
- Structured Training Program: The institute developed a structured training program, starting with basic operations and gradually introducing more complex tasks as students' skills improved.
- Supervised Practice: Instructors closely supervised initial practice sessions to ensure proper technique and safety, gradually allowing students more independence as they demonstrated competence.
- Maintenance Schedule: The institute established a rigorous maintenance schedule to keep the press brakes in good condition, despite the high usage rate.
Outcome:
- Skilled Graduates: Students graduated with hands-on experience, making them job-ready and attractive to employers in the manufacturing sector.
- Machine Longevity: Despite heavy use, the manual press brakes remained in good working condition due to regular maintenance and careful supervision during training sessions.
- Industry Partnerships: The success of the program led to partnerships with local manufacturers, who provided input on curriculum development and offered internships to students.
Krrass Machinery - Provide Various Metalwork Solution
Krrass Machinery is committed to providing high-quality metalworking solutions, backed by excellent service and support to meet the evolving needs of the metal fabrication industry. With a focus on innovation, reliability, and customer satisfaction, Krrass Machinery remains a trusted partner for businesses worldwide. They provide all kinds of press brakes, laser cutting machines, shearing machines, groovers, etc, offering a wide range of machinery tailored to meet the diverse needs of the metal fabrication industry.
