NC Press Brake with E310P Controller

NC Press Brake (E310P Controller)

With its easy-to-use control unit (touchscreen E310P controller), rigid body frame, perfect design, high efficiency, multiple solutions for tool use, top CE safety standards, and a suitable price range, the economical nc press brake servo 2 Axis with E300P controller is the world leader in its category. The nc press brake 2 Axis with E300P controller is well-equipped; simultaneously, the nc press brake 2 Axis with E310P controller can pair it with a flexible, energy-efficient solution.

NC Press Brake with E310P Controller - wc67k e300p thumb

NC Press Brake with E310P Controller - square blank shearing

Simple and solid Hydraulic Press Brake

NC Press Brake with E310P Controller - shears manufacturers

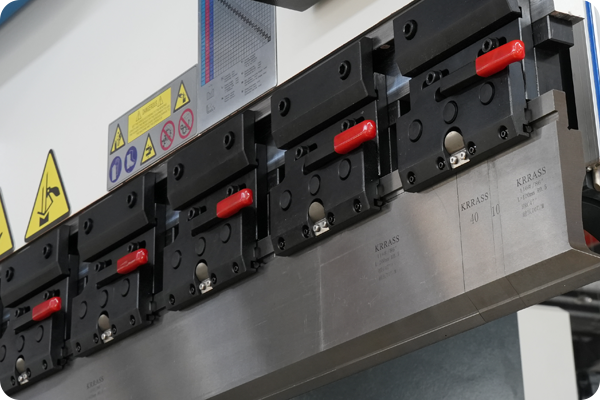

Work area can be customized and all types of tool clamping can be installed

NC Press Brake with E310P Controller - guillotine shears models

Tailored-made Hydraulic Press Brake

Controller: Estun E310P

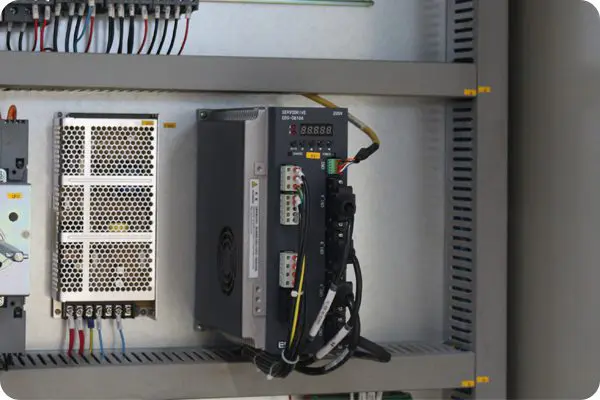

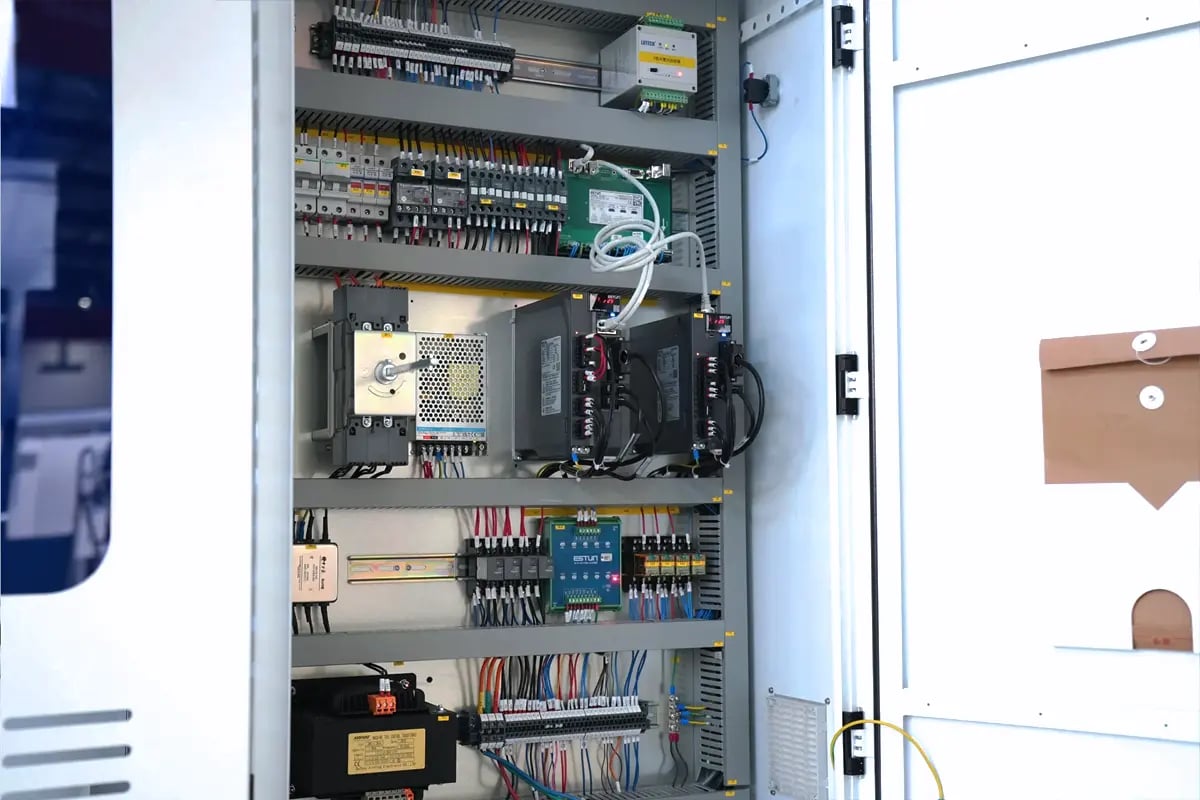

Electrics: Schneider Electric - France

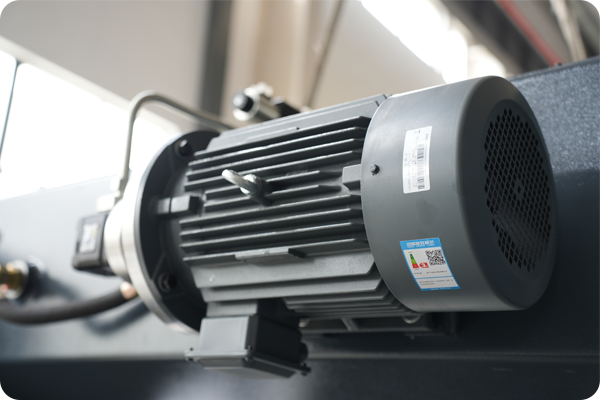

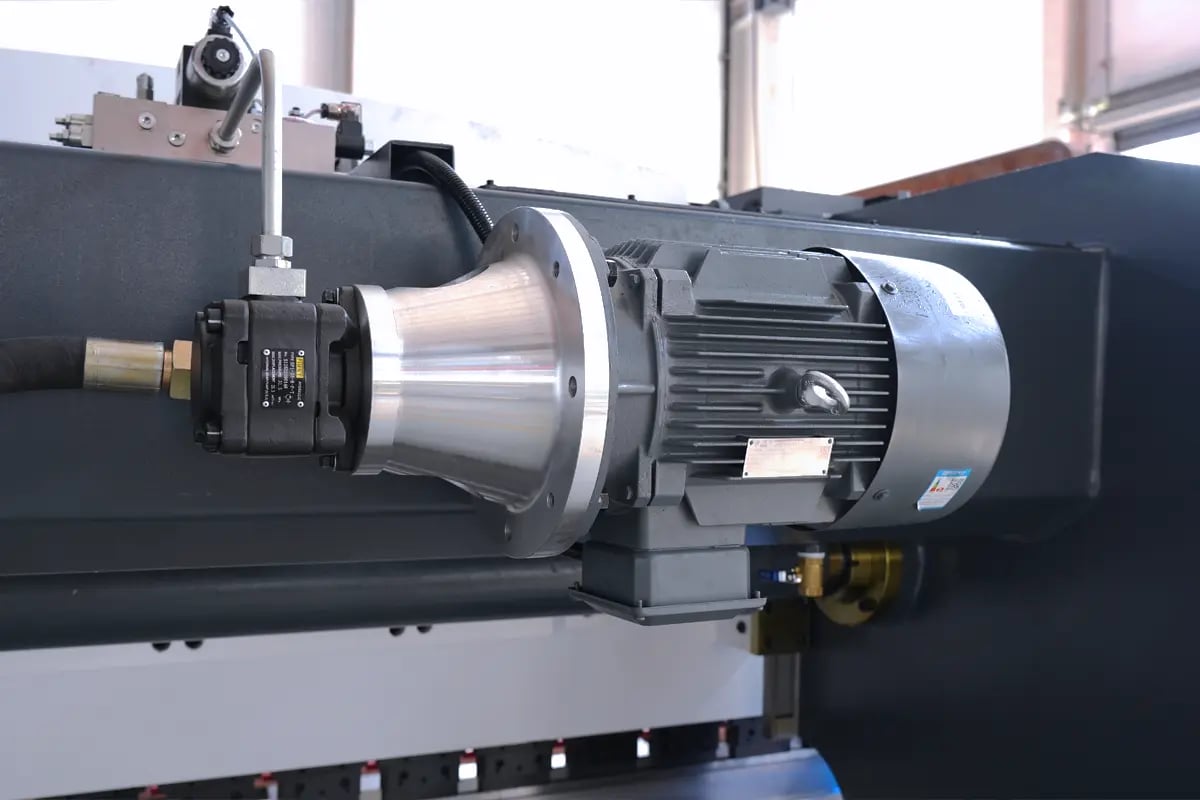

Main Motor: Siemens Motor - Germany

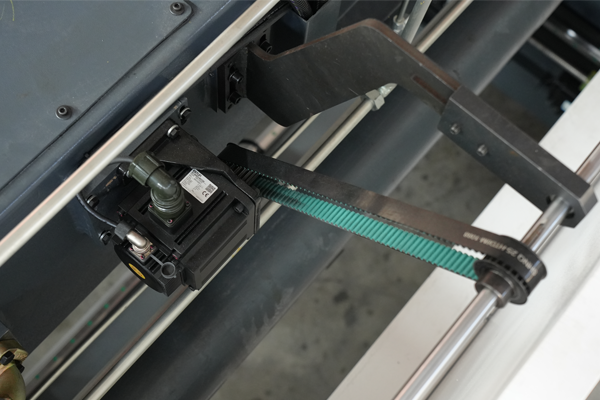

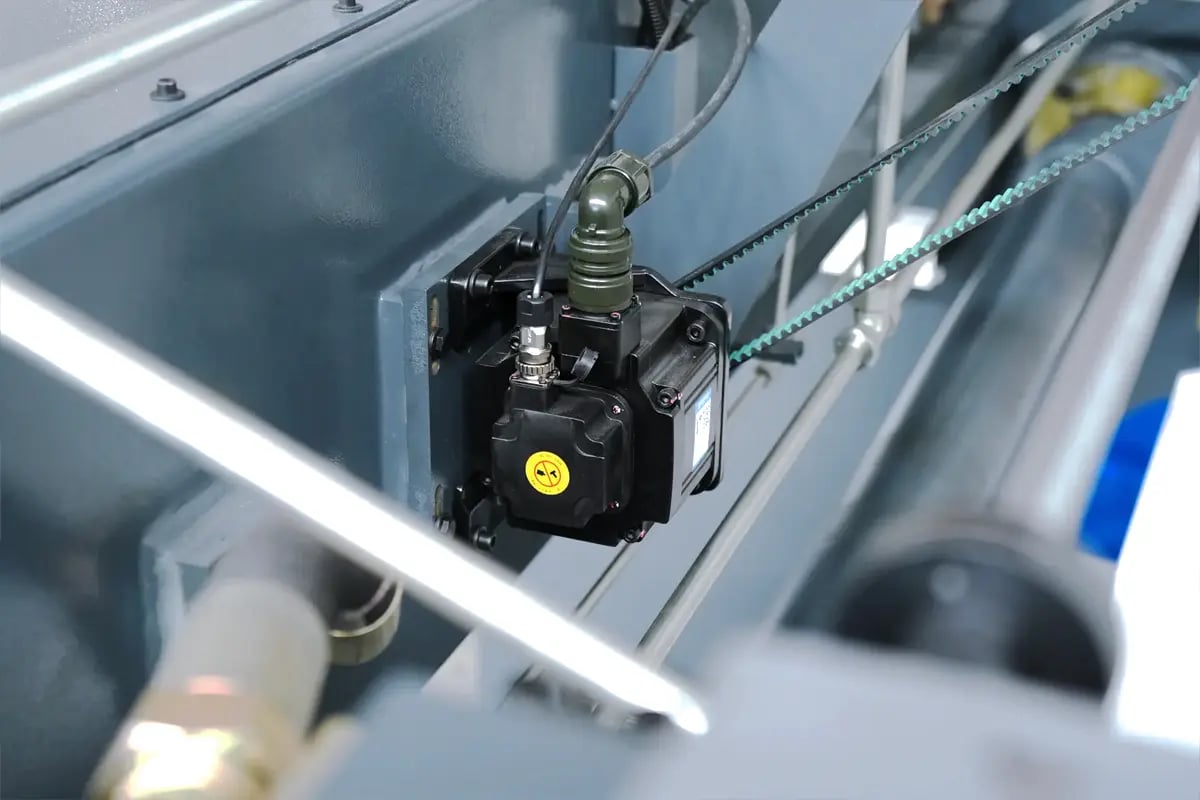

Servo Motor: ESTUN

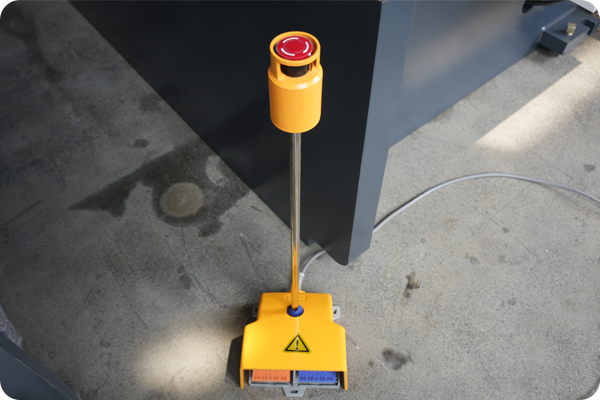

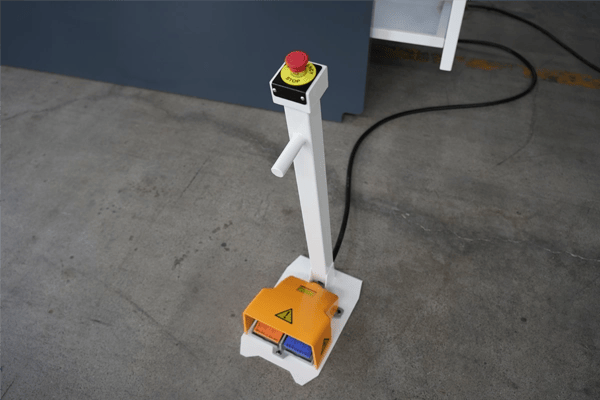

Foot Switch: KACON - South Korea

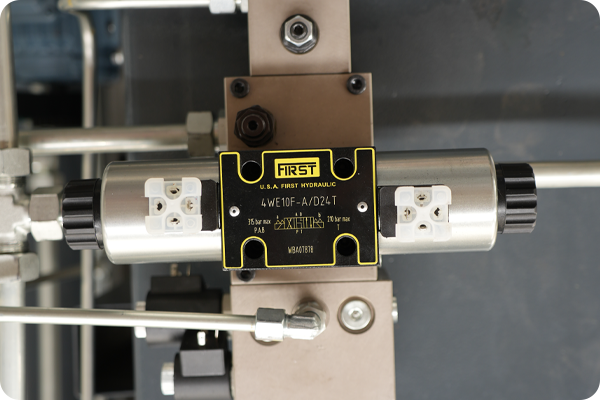

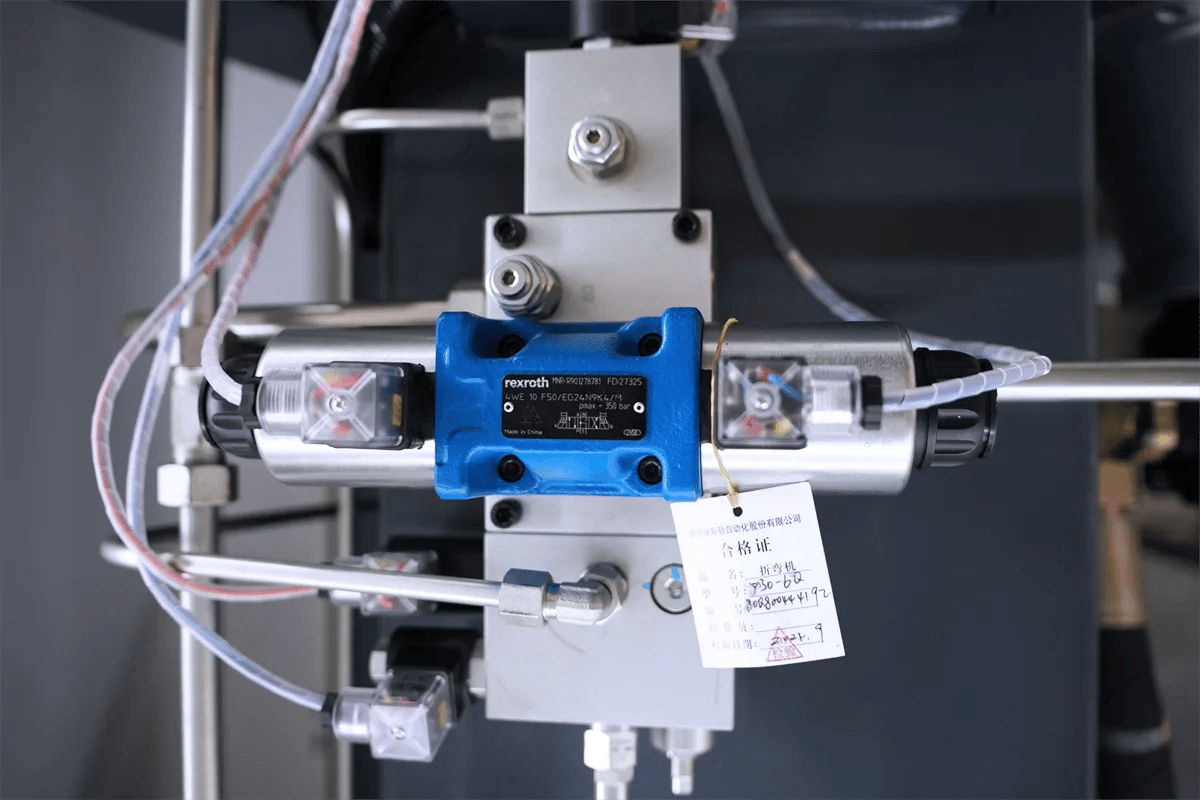

Hydraulic System: FIRST - USA

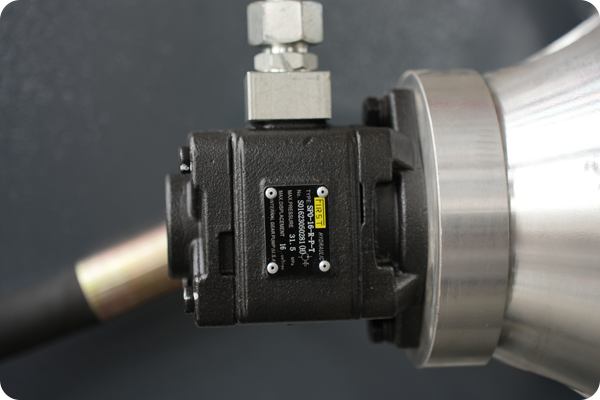

Oil Pump: FIRST - USA
Sealing Ring: PARKER - America
High Efficiency Motor - Class IE3
Tube Connector: EMB - Germany
Backgauge: SHAC - Taiwan

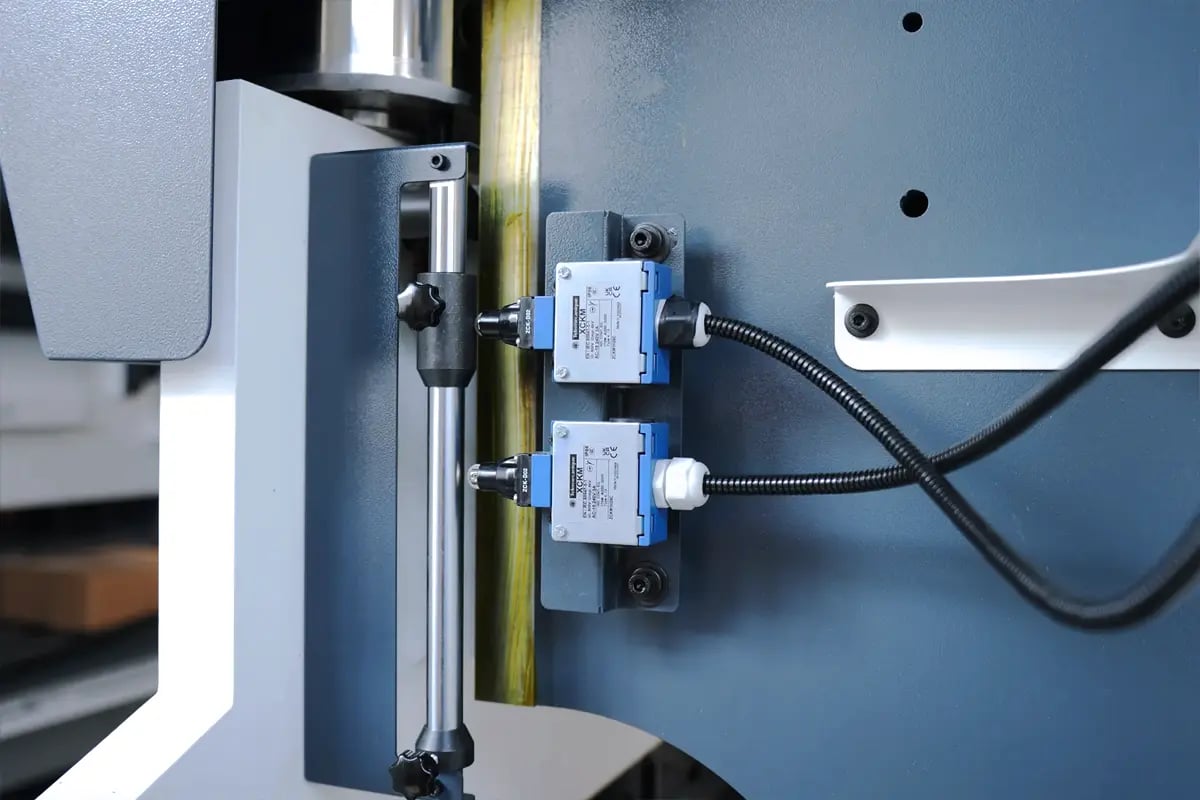

Y-axis travel switch: Schneider

Standard Equipment

Introduction to Configuration

FEA & Stress Analysis

Stress Analysis & Finite Element Analysis

The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above.

NC Press Brake with E310P Controller - e300p thumb 1

ESTUN NC Control System

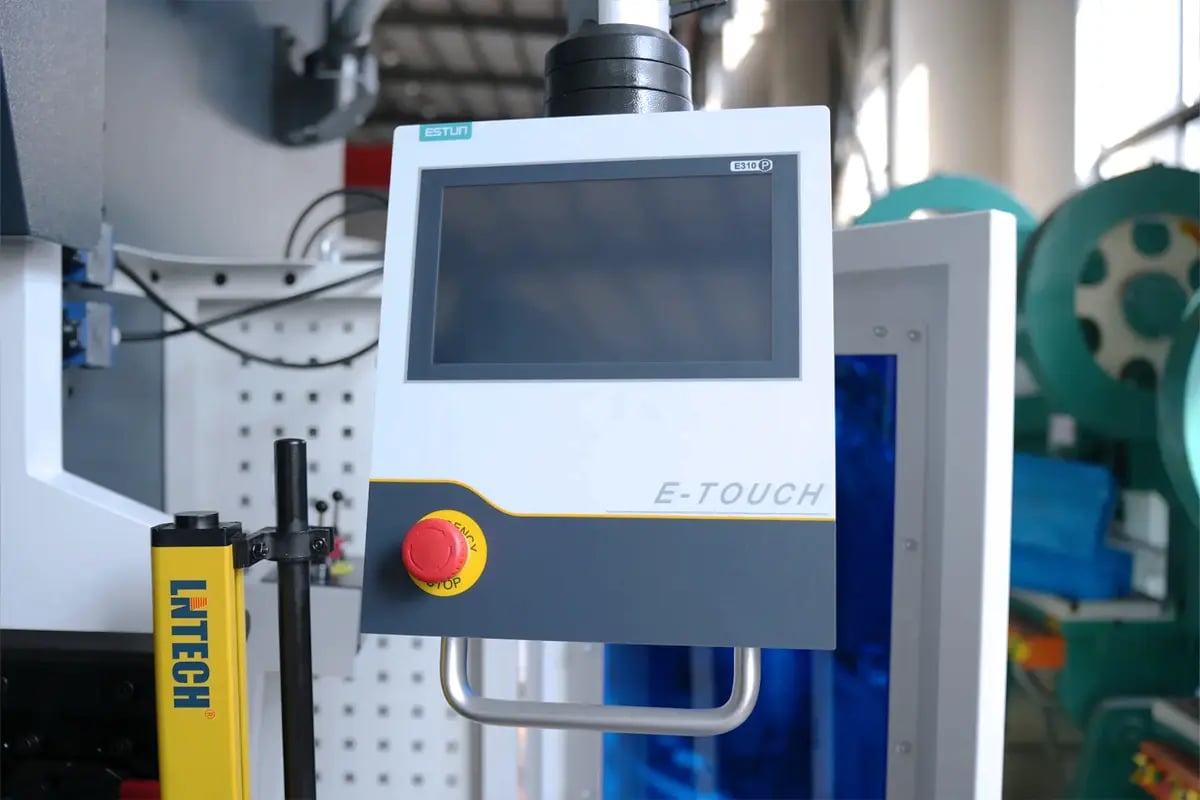

ESTUN E310P Controller

4 axes are supported, viz, X-axis, Y-axis, R-axis and C-axis.
The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
Automatic calculation of the block position, according to the bending angle, material, thickness and mold parameters.
The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
Optional hydraulic or mechanical to control the C-axis.
Program in absolute value or angle.
Materials and die informations are programable.
Language setting and unit setting.

Why KRRASS Hydraulic Press Brake?

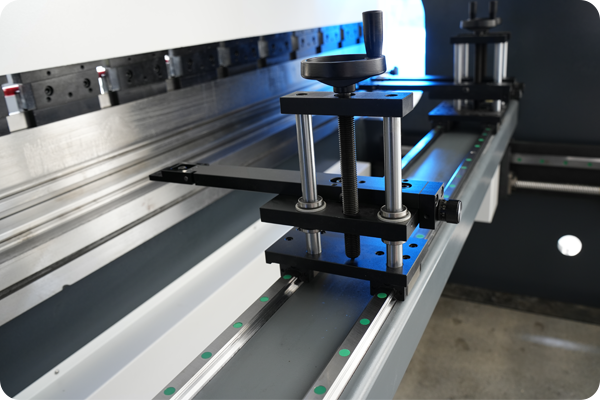

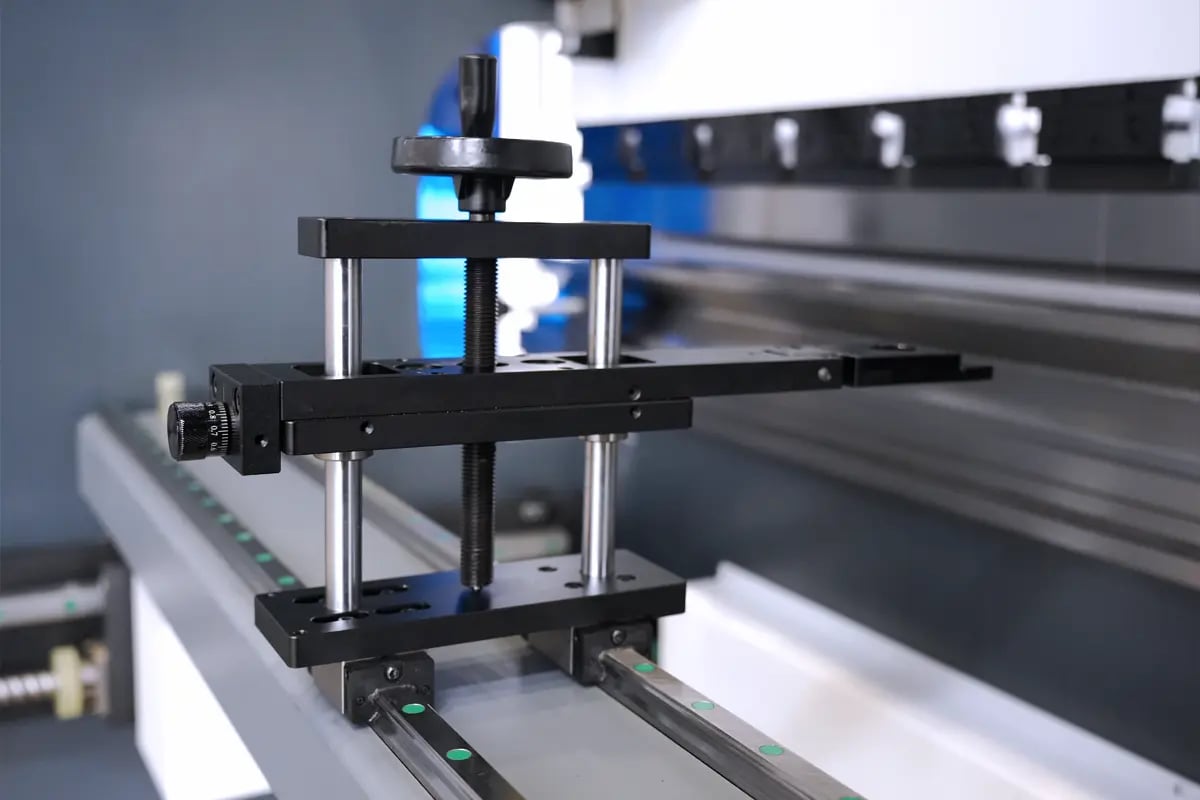

Hydraulic Press Brake Back Gauge System

One of the most important factor for bending capacity is the design of back gauge and stability. Quality cutting is possible with perfect product,stabilty and precision back gauge.

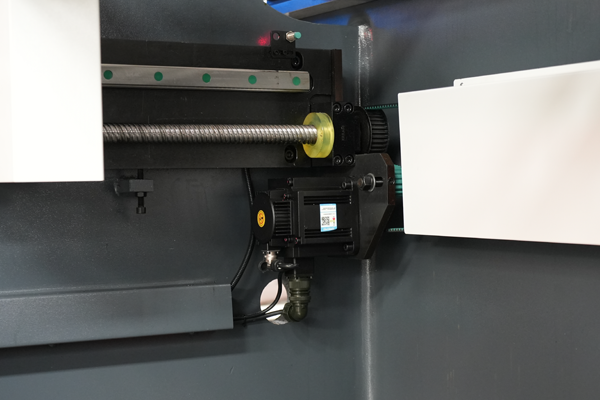

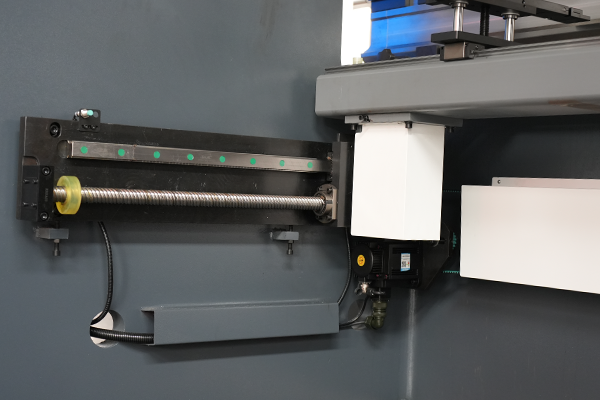

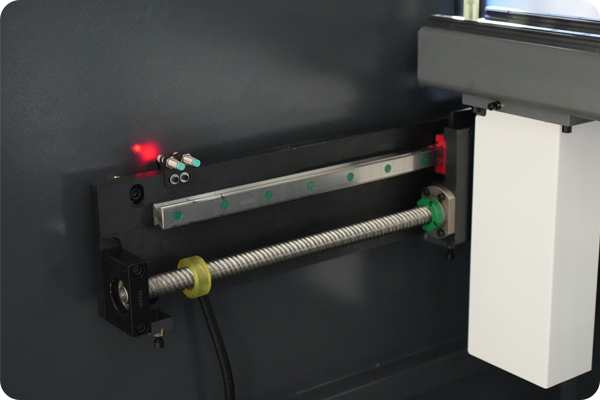

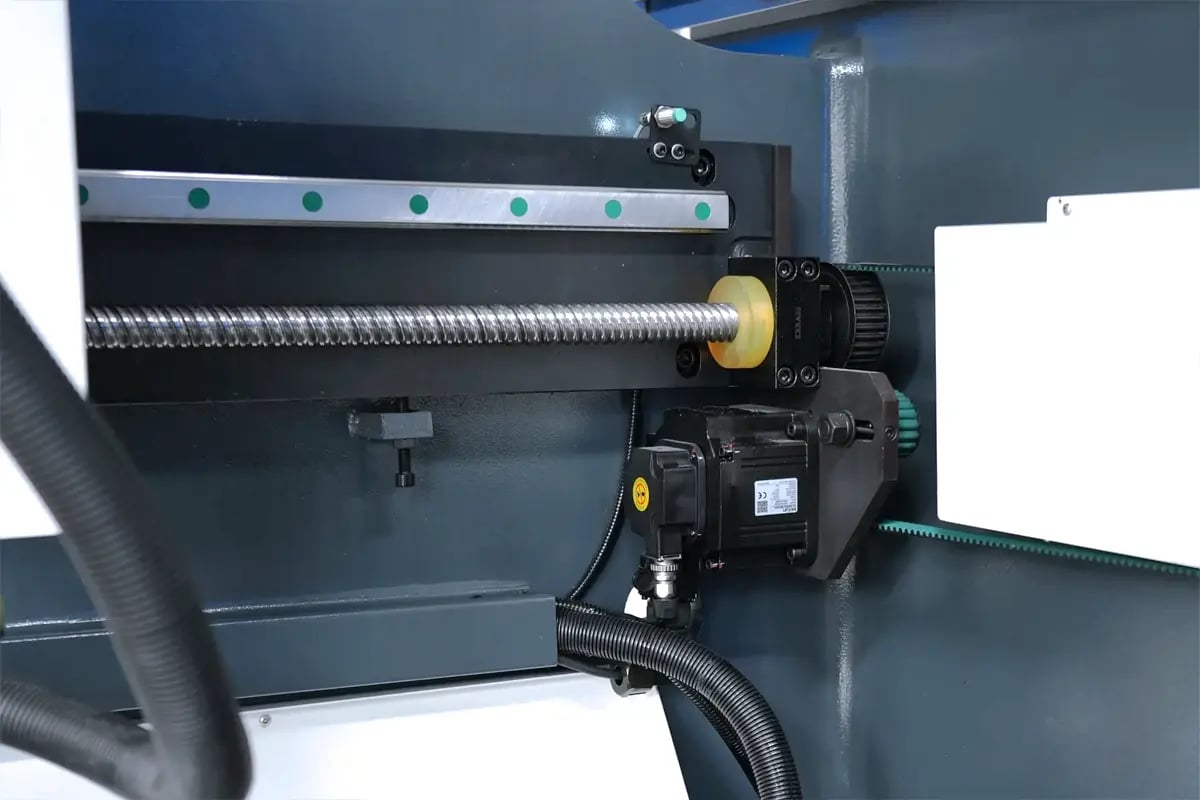

The high speed ballscrew back gauge system movement is also supported with linear guides, which helps the back gauge achieve long life, greater sensitivity and strengthens against any collisions.

Punches & Dies

The Hydraulic Press Brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate toolings according to different bending requirements of customers.

More Details of Hydraulic Press Brake

Hydraulic Press Brake Technical Parameter

Model	Bending Pressure (KN)	Bendling Length (mm)	Uprights Distance (mm)	Throat Depth (mm)	Slider Stroke (mm)	Max. Opening Height (mm)	Y-axis Downward Speed (mm/sec)	Y-axis Back Stroke Speed (mm/sec)	Max. X-axis Distance (mm)	Main Motor (KW)
40T/1600	400	1600	950	230	100	320	80	70	300	3
40T/2500	400	2500	1850	230	100	320	80	70	600	5.5
63T/2500	630	2500	1900	250	100	320	80	70	600	5.5
63T/3200	630	3200	2560	250	100	320	80	70	600	5.5
80T/2500	800	2500	1990	300	100	320	80	70	600	7.5
80T/3200	800	3200	2560	320	100	350	80	70	600	7.5
80T/4000	800	4000	3200	320	100	350	80	70	600	7.5
100T/2500	1000	2500	1990	320	120	350	80	70	600	7.5
100T/3200	1000	3200	2600	320	150	400	80	70	600	7.5
100T/4000	1000	4000	3200	320	150	400	90	82	600	7.5
125T/2500	1250	2500	1990	320	150	400	90	82	600	11
125T/3200	1250	3200	2600	320	150	400	90	82	600	11
125T/4000	1250	4000	3200	320	150	400	90	82	600	11
160T/2500	1600	2500	1990	320	200	460	90	86	600	11
160T/3200	1600	3200	2580	320	200	460	90	86	600	11
160T/4000	1600	4000	2900	320	200	460	90	86	600	11
160T/5000	1600	5000	3900	320	200	460	90	86	600	11
160T/6000	1600	6000	4900	320	200	460	90	86	600	11
200T/2500	2000	3200	1990	320	200	460	90	86	600	11
200T/3200	2000	3200	2480	320	200	460	90	86	600	11
200T/4000	2000	4000	2900	320	200	460	90	86	600	11
200T/5000	2000	5000	3900	320	200	460	90	86	600	11
200T/6000	2000	6000	4900	320	200	460	90	86	600	11
250T/3200	2500	3200	2450	400	250	590	90	86	600	18.5
250T/4000	2500	4000	2900	400	250	590	90	86	600	18.5
250T/5000	2500	5000	3900	400	250	590	90	86	600	18.5
250T/6000	2500	6000	4900	400	250	590	90	86	600	18.5
300T/3200	3000	3200	2450	400	250	590	90	86	600	22
300T/4000	3000	4000	2900	400	250	590	90	86	600	22
300T/5000	3000	5000	3900	400	250	590	90	86	600	22
300T/6000	3000	6000	4900	400	250	590	90	86	600	22
400T/3200	4000	3200	2400	400	250	590	90	86	600	30
400T/4000	4000	4000	2900	400	250	590	90	86	600	30
400T/5000	4000	5000	3900	400	250	590	90	86	600	30
400T/6000	4000	6000	4900	400	250	590	90	86	600	30
500T/4000	5000	4000	2900	400	250	590	90	86	600	45
500T/5000	5000	5000	3900	400	250	590	90	86	600	45
500T/6000	5000	6000	4900	400	320	590	90	86	600	45
600T/4000	6000	4000	2900	400	320	590	90	86	600	55
600T/5000	6000	5000	3900	400	320	590	90	86	600	55
600T/6000	6000	6000	4900	400	320	590	90	86	600	55
600T/7000	6000	7000	5900	400	320	590	90	86	600	55
600T/8000	6000	8000	6900	400	320	590	90	86	600	55
