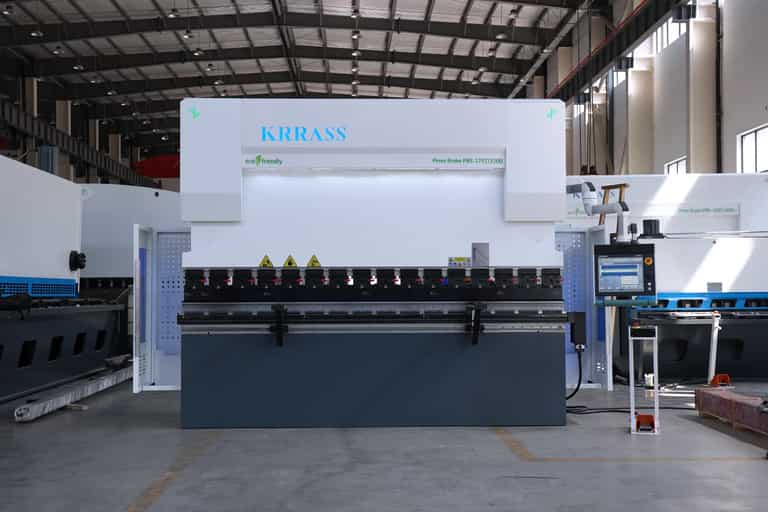

DELEM DA66T Metal Bending Machine
DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - Image 2
DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - Image 3
DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - Image 4

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis

Original price was: $41,860.00.Current price is: $38,660.00.

Model: PBS-175T3200

Axis: 6+1 Axis

Category: CNC Press Brake

Brand Name: KRRASS

Bending Pressure: 1750KN

Bending Length: 3200mm

Controller: DELEM DA-66T

HS Code: 8462299000

Application: DELEM DA66T metal bending machine, PBS-175T3200 DA66T 6+1 Axis sheet metal bender

Technologyies

Bending Pressure:1750KN
Bending Length:3200mm
CNC Control Axes:Y1+Y2+X+R+Z1+Z2+W Crowning
Main Motor:13.2KW
Operating Voltage:380V 50Hz
CNC System:DA-66T
Length* Width* Height:4050mm * 1800mm * 2730mm

Configurations

DELEM DA66T Metal Bending Machine

Main Feature

The sheet metal bending machine is very satisfactory, It has an easy to use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

  • Simple and solid sheet metal bender
  • Work area can be customized and all types of tool clamping can be installed
  • Tailored-made sheet metal bending machine
DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - delem da 66t control 1

DELEM DA-66T Control

  • 2D graphical touch screen programming mode
  • 17″ high resolution colour TFT
  • 3D graphics acceleration
  • Colour LCD display
  • 1280 x 1024 pixels, 16 bit colour
  • Full touch screen control (IR-touch)
  • Sensor bending & correction interface Profile-TL offline software
  • Full Windows application suite
DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - electric crowning system 3

Electric Crowning System

Low worktable has an automatic crowning compensation uint; compensation amount is automatically set up by CNC system, with guarantee a same bending angel on full length.

The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - fagor grating ruler 3

Fagor Grating Ruler

Fagor grating ruler can accurately measure the small deformation caused by bending force of machine tool,then feedback compensation, to ensure the bending accuracy of plates of any thickness and materia.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - schneider electric 5

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - estun servo main motor 2

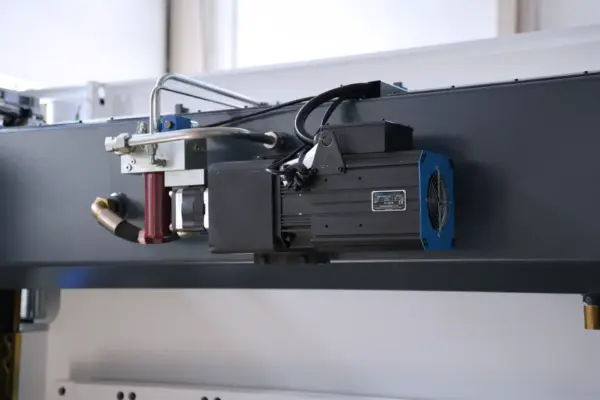

Estun Servo Main Motor

The Estun servo main motor greatly reduces the power consumption when the press brake is working, increases the service life of the machine, and keeps the machine working in a lower noise environment, which is green and environmentally friendly.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - rexroth hydraulic oil pump

Rexroth Hydraulic Oil Pump

The oil pump is highly regarded for its exceptional performance, known for its quiet operation and remarkable longevity, making it a reliable choice for various applications.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - rexroth hydraulic valve 1

Rexroth Hydraulic Valve

The world famous brand Rexroth, Is a professional hydraulic valve supplier.

The EMB oil pipe joint has a beautiful structure and reduces the possibility of oil leakage.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - rexroth proportional valve 3

Rexroth Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the CNC press brake machine tool has high stability and high precision in the process of high-speed operation.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - x axis ball screw linear guide 1

X-axis Ball Screw Linear Guide

  • Precision: Ball screws offer enhanced precision, reduced energy consumption, and lower maintenance requirements.
  • Responsiveness: Ball screws deliver exceptionally smooth motion.
  • Friction: Ball screws rely on recirculating balls to reduce friction instead of lubricants.
DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - back finger stoper 2

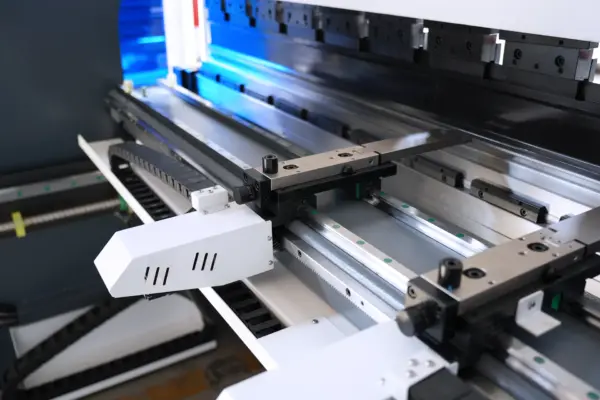

Back Finger Stoper

High-precision backstop means that customers can input the size into the system according to the product’s dimensions, and it can be positioned accurately with an accuracy of 0.01mm.

X axis adopts ball screw and linear quide, ensure high synchronization accuracy and very long life. Widened and extended custom stop fingers, Finger support frame with double linear guide, Meet your reguirements.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - x axis servo motor 1

X-axis Servo Motor

In addition, the advantages of servo motors include:

  • High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
  • High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds
  • High reliability: Highly reliable
DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - r axis servo motor

R-axis Servo Motor

Servo motors have several advantages, including:

  • High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds
  • High efficiency: Can approach 90% at light loads
  • High output power: Relative to their size and weight
  • Closed-loop control: Ensures greater accuracy
  • Quiet operation: Little sound noise
  • High reliability: Highly reliable
  • High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - precision quick clamping device 3

Precision Quick Clamping Device

It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantages of high precision, easy clamping, no loosening, no tool dropping, etc.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - front material support 3

Front Material Support

The front material support can be lifted and lowered freely. When you need to bend larger metal sheets, it can effectively assist in reducing your workload.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - south korea kacon foot switch 3

South Korea KACON Foot Switch

South Korea brand foot switch is movableand can stop the Metal Bending Machine anytime by theemergency button.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - back of the fuselage 1

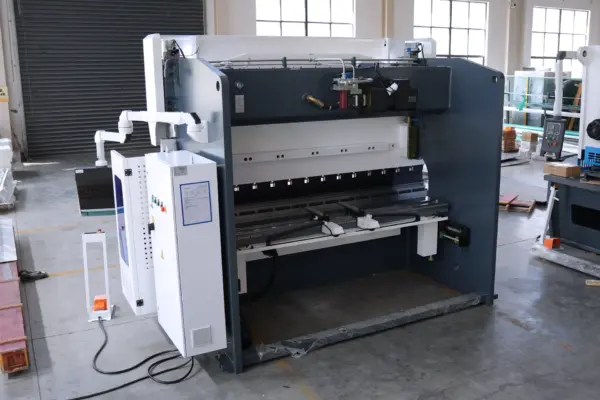

Back of The Fuselage

The whole of the Sheet Metal Bending Machine has a clean and neat structure design, regular lines and is easy to operate, making it an ideal choice for bending metal sheets.

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - thickness of workbench 100mm

Thickness of workbench (100mm)

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - thickness of side panel 60mm

Thickness of side panel (60mm)

DELEM DA66T Metal Bending Machine, PBS-175T3200 DA66T 6+1 Axis - thickness of slider 70mm

Thickness of slider (70mm)

Tooling (Optional)

Standard tooling

Standard tooling

Top tooling

Non-Standard tooling

Gooseneck tooling

Gooseneck tooling

Double-V Concentric Mold

Double-V Concentric Mold

Four-V Concentric Mold

Four-V Concentric Mold

Multi-V mold

Multi-V Mold
