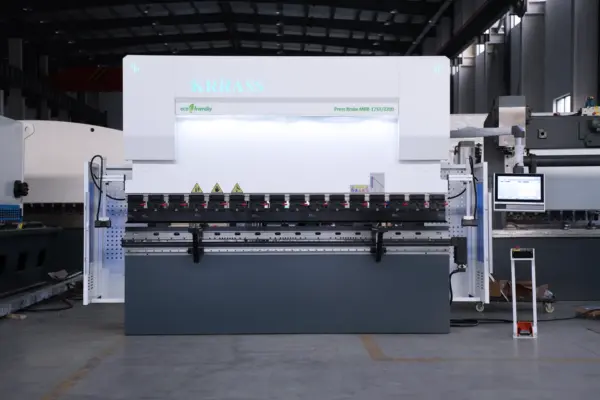

Hydraulic Sheet Metal Press Brakes For Sale, MB8-175T3200 DA58Tx 4+1 axis Press Brakes
Original price was: $37,420.00.$34,620.00Current price is: $34,620.00.
Model: PBS-175T3200
Axis: 4+1 Axis
Category: CNC Press Brake
Brand Name: KRRASS
Bending Pressure: 1750KN
Bending Length: 3200mm
Controller: DELEM DA-58Tx
HS Code: 8462299000
Application: Hydraulic Sheet Metal Press Brake, MB8-175T3200 DA58Tx 4+1 axis Hydraulic Press Brake
Technologyies
| Bending Pressure: | 1750KN |
| Bending Length: | 3200mm |
| CNC Control Axes: | Y1+Y2+X+R+W Crowning |
| Main Motor: | 13.2KW |
| Operating Voltage: | 380V 50Hz |
| CNC System: | DA-58Tx |
| Length* Width* Height: | 4050mm * 1800mm * 2730mm |
Configurations
Main Feature
The Hydraulic Sheet Metal Press Brake is very satisfactory, It has an easy to use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.
- Simple and solid Sheet Metal Press Brake
- Work area can be customized and all types of tool clamping can be installed
- Tailored-made Hydraulic Press Brake

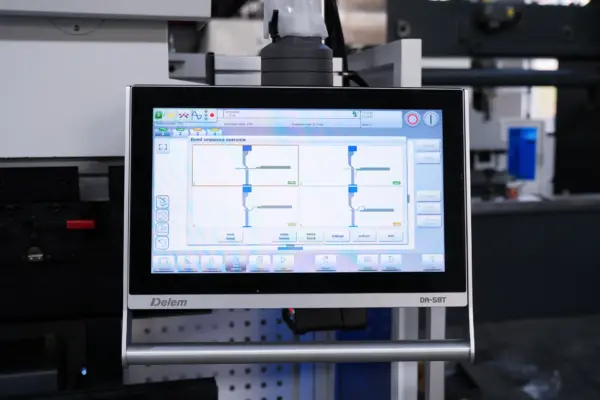

DELEM DA-58Tx Control
The DA-58Tx touch CNC control provides a modern compact and versatile solution for powerful economic Hydraulic Sheet Metal Press Brake applications.
- Profile-58TL offline software
- 18.5" high resolution colour TFT
- 2D graphical touch screen programming
- Up to 4 axes (Y1, Y2 + 2 aux. axes)
- Bend sequence calculation
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- CNC Crowning control
- USB memory stick interfacing

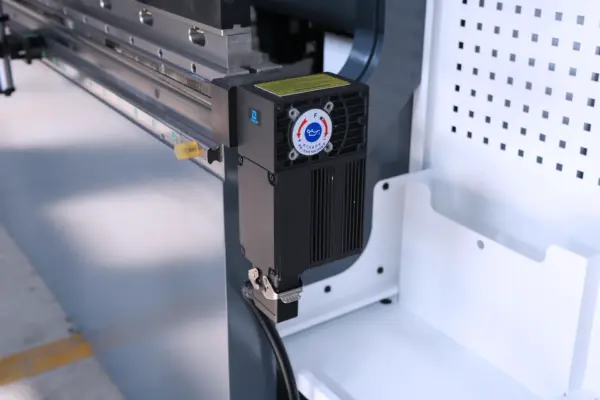

Electric Crowning System
Low worktable has an automatic crowning compensation uint; compensation amount is automatically set up by CNC system, with guarantee a same bending angel on full length.
The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.
Fagor Grating Ruler
Fagor grating ruler can accurately measure the small deformation caused by bending force of machine tool,then feedback compensation, to ensure the bending accuracy of plates of any thickness and materia.
Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.
German Siemens Main Motor
The German famous brand motor increases the service life of the 110Ton CNC Bending Machine and keeps the CNC Bending Machine working in a low-noise environment.
Hydraulic Oil Pump
The oil pump is highly regarded for its exceptional performance, known for its quiet operation and remarkable longevity, making it a reliable choice for various applications.
Rexroth Hydraulic Valve
The world famous brand Rexroth, Is a professional hydraulic valve supplier.
The EMB oil pipe joint has a beautiful structure and reduces the possibility of oil leakage.
Rexroth Proportional Valve
The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the Sheet Metal Press Brake tool has high stability and high precision in the process of high-speed operation.
X-axis Ball Screw Linear Guide
- Precision: Ball screws offer enhanced precision, reduced energy consumption, and lower maintenance requirements.
- Responsiveness: Ball screws deliver exceptionally smooth motion.
- Friction: Ball screws rely on recirculating balls to reduce friction instead of lubricants.
Back Finger Stoper
High-precision backstop means that customers can input the size into the system according to the product’s dimensions, and it can be positioned accurately with an accuracy of 0.01mm.
X axis adopts ball screw and linear quide, ensure high synchronization accuracy and very long life. Widened and extended custom stop fingers, Finger support frame with double linear guide, Meet your reguirements.
X-axis Servo Motor
In addition, the advantages of servo motors include:
- High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
- High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds
- High reliability: Highly reliable
R-axis Servo Motor
Servo motors have several advantages, including:
- High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds
- High efficiency: Can approach 90% at light loads
- High output power: Relative to their size and weight
- Closed-loop control: Ensures greater accuracy
- Quiet operation: Little sound noise
- High reliability: Highly reliable
- High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
Precision Quick Clamping Device
It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantages of high precision, easy clamping, no loosening, no tool dropping, etc.
MSD laser safety protection system (optional)
Equipped with MSD laser safety protection system to ensure efficient production and the personal safety of operators.
Front Material Support
The front material support can be lifted and lowered freely. When you need to bend larger metal sheets, it can effectively assist in reducing your workload.
South Korea KACON Foot Switch
South Korea brand foot switch is movableand can stop the automated bending machine anytime by theemergency button.

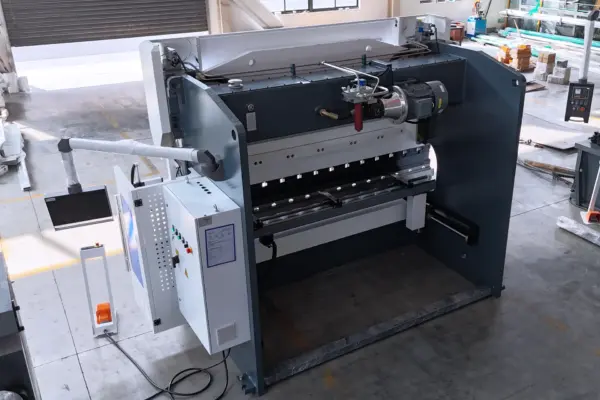

Back of The Fuselage
The whole of the Hydraulic Sheet Metal Press Brake has a clean and neat structure design, regular lines and is easy to operate, making it an ideal choice for bending metal sheets.
Thickness of workbench (100mm)
Thickness of side panel (60mm)
Thickness of slider (70mm)
Tooling (Optional)
Standard tooling
Non-Standard tooling
Gooseneck tooling
Double-V Concentric Mold
Four-V Concentric Mold
Multi-V Mold
Warranty
30-DAY MONEY BACK GUARANTEE
You should feel completely satisfied with your KRRASS Press Brake purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new KRRASS machine that we do, which is why every Press Brake purchase includes our Hassle-Free KRRASS 30-Day Return option in order to fully experience and evaluate their new KRRASS machine. It allows you to return or exchange your KRRASS purchase, for any reason, within 30 days of initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the 15% restocking fee for items & accessories, 25% KRRASS Press Brake Machine Series customization fee, and shipping or handling costs are not included. Click here for details
2-YEAR LIMITED MACHINE WARRANTY
2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the KRRASS All Series of products will perform according to the warranty policy stated above from date of invoice. Products will be free from defects in materials and workmanship under normal use and service for the stated period. KRRASS has the responsibility to offer a timely solution and/or repair if deemed inoperable or defective by KRRASS Repair & Support Specialists. Clients are obligated to show proof of any such claims of machine parts or operational defects. Click here for details
