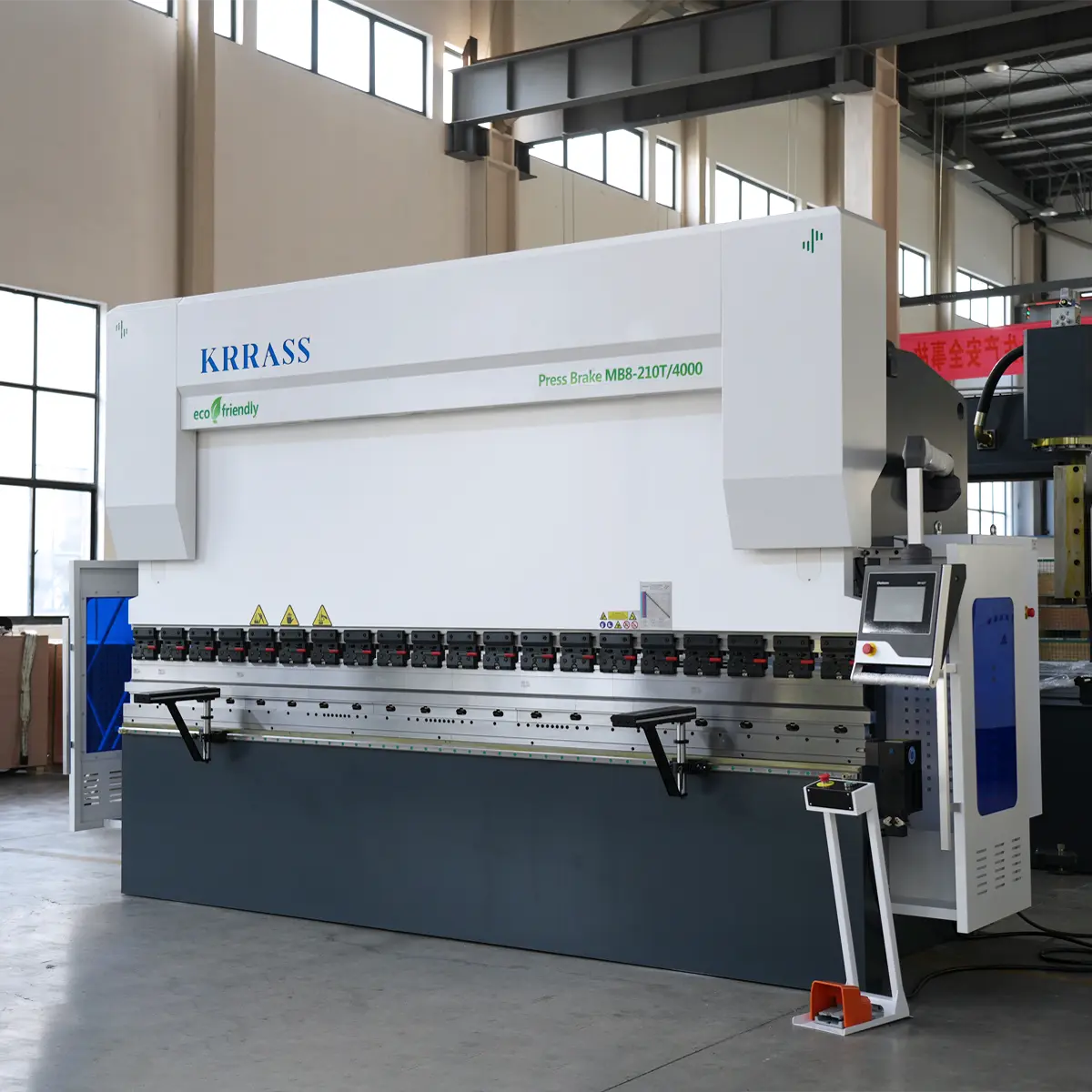

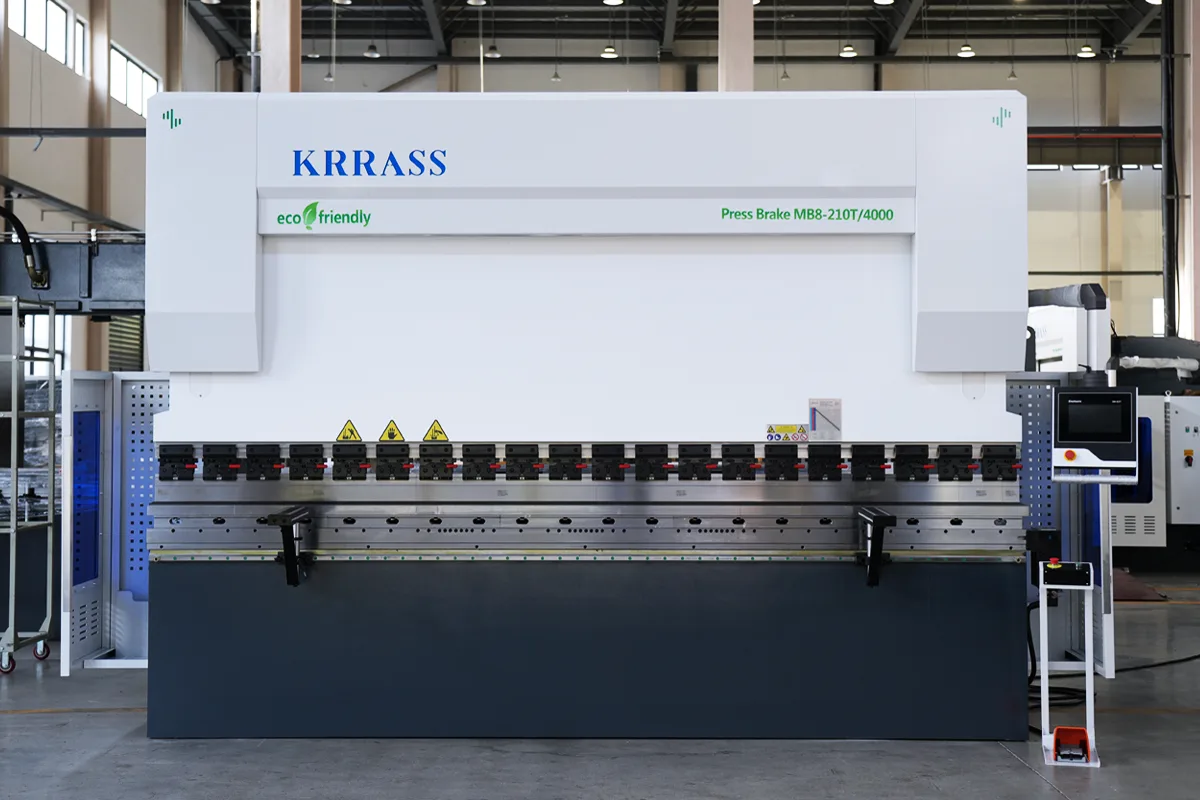

210Ton Press Brake Machine for Sale, 4 Meter Hydraulic Metal Brake
Original price was: $35,299.00.$32,699.00Current price is: $32,699.00.
Model: MB8-210T4000
Axis: 4+1 Axis
Category: CNC Press Brake
Brand Name: KRRASS
Bending Pressure: 2100KN
Bending Length: 4000mm
Controller: DELEM DA-53T
HS Code: 8462299000
Application: 210 Ton Press Brake Machine for Sale,Hydraulic Metal Brake,4 Meter Hydraulic Metal Brake
Technologyies
| Bending Pressure: | 2100KN |
| Bending Length: | 4000mm |
| CNC Control Axes: | Y1+Y2+X+R+W Crowning |
| Main Motor: | 15KW |
| Operating Voltage: | 380V 50Hz |
| CNC System: | DA-53T |
| Length* Width* Height: | 4820mm * 1850mm * 3100mm |
Configurations
Main Feature
The 210Ton Press Brake Machine with DA-53T Controller with its easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.
- Simple and solid Hydraulic Press Brake
- Work area can be customized and all types of tool clamping can be installed
- Tailored-made Hydraulic Press Brake

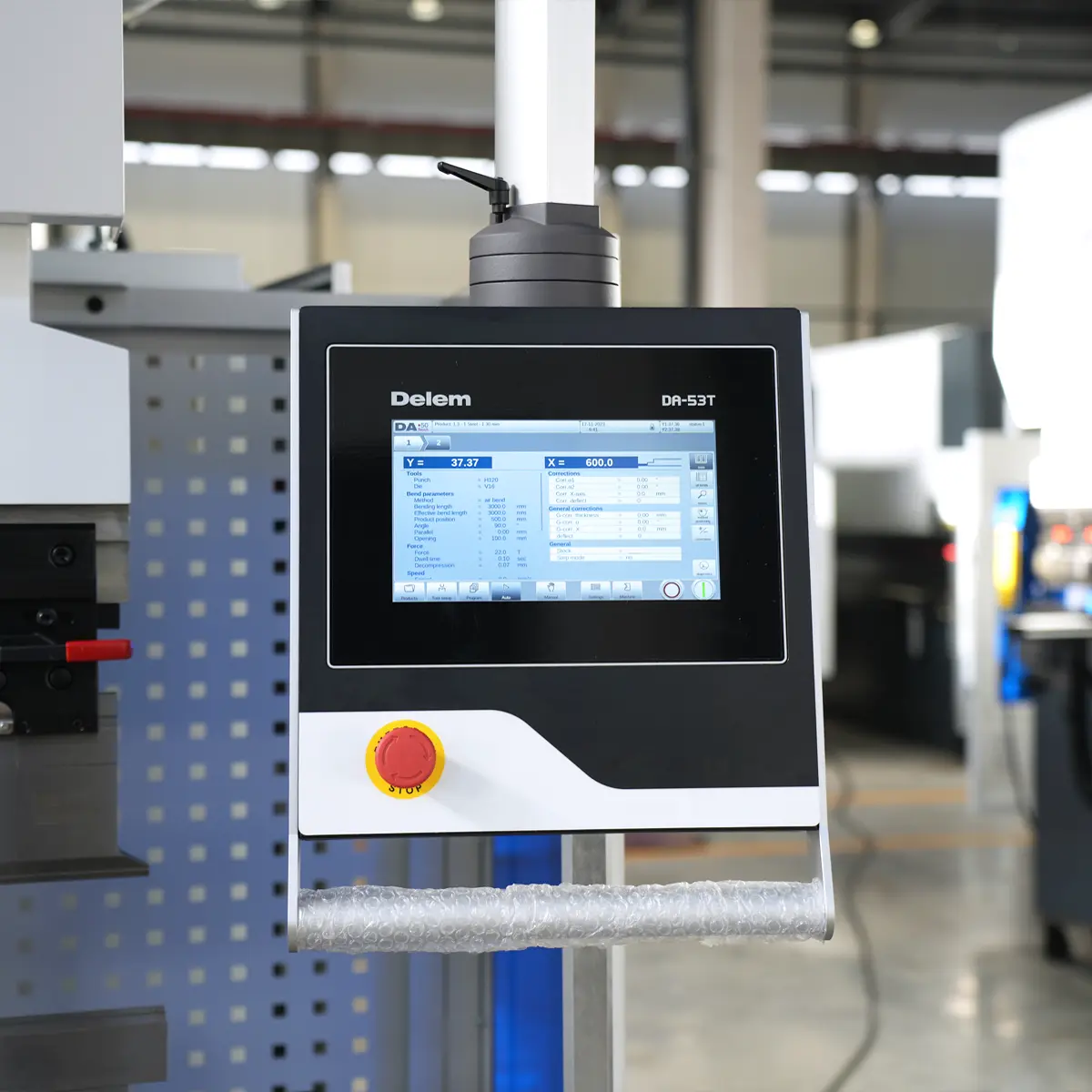

DELEM DA-53T Control
- 10.1″ high resolution colour TFT
- “Hot-key” touch navigation
- Up to 4 axes (Y1,Y2 + 2 aux. axes)
- Tool / material / product library
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- CNC Crowning control
- USB memory stick interfacing
- Profile-53TL offline software
Electric Crowning System
- Very precise bending angles
- Europe type dies with 60 mm and 90 mm
- Base can be clamped as well as single dies with 13 mm tang
- Electric crowning with a controller
- Precise positioning and alignment of the crowning table
- Easy and fast usage
Fagor Grating Ruler
Slider position signal is feedbacked to controller by Spain FAGOR Grating ruler , then the CNC controller adjusts the amount of fuel tank by changing the synchronous valve opening size.
Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.
German Siemens Main Motor
The German famous brand motor increases the service life of the 210Ton Press Brake Machine and keeps the machine working in a low-noise environment.
Rexroth Proportional Valve
The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the 210Ton Press Brake Machine tool has high stability and high precision in the process of high-speed operation.

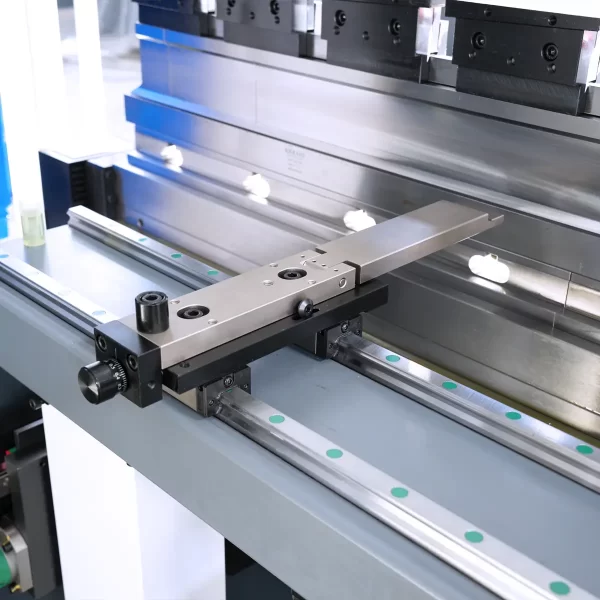

2-Axis Backgauge with X, R-Axis
- Hiwin Ball screws and linear guide on X, R-axis
- Axis X speed 500 mm/s
- Manual Z1, Z2-axis with HIWIN linear guide
- Mechanical accuracy ± 0.01 mm
- Fingers with double stop and micrometric adjustment
High-precision Quick Mold Change Device
The upper mold is divided into different gold sizes and can also be cut according to customer requirements.
The lower mold adopts a Single-V concentric mold, which can adapt to customers’ bending of materials with different thicknesses. The mold can also be modified according to customer requirements. To meet the best needs of customers.
South Korea KACON Foot Switch
South Korea brand foot switch is movableand can stop the 210Ton Press Brake Machine anytime by theemergency button.
Thickness of workbench (150mm)
Thickness of side panel (70mm)
Thickness of slider (80mm)
Tooling (Optional)
Standard tooling
Non-Standard tooling
Gooseneck tooling
Double-V Concentric Mold
Four-V Concentric Mold
Multi-V Mold
Warranty
30-DAY MONEY BACK GUARANTEE
You should feel completely satisfied with your KRRASS Press Brake purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new KRRASS machine that we do, which is why every Press Brake purchase includes our Hassle-Free KRRASS 30-Day Return option in order to fully experience and evaluate their new KRRASS machine. It allows you to return or exchange your KRRASS purchase, for any reason, within 30 days of initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the 15% restocking fee for items & accessories, 25% KRRASS Press Brake Machine Series customization fee, and shipping or handling costs are not included. Click here for details
2-YEAR LIMITED MACHINE WARRANTY
2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the KRRASS All Series of products will perform according to the warranty policy stated above from date of invoice. Products will be free from defects in materials and workmanship under normal use and service for the stated period. KRRASS has the responsibility to offer a timely solution and/or repair if deemed inoperable or defective by KRRASS Repair & Support Specialists. Clients are obligated to show proof of any such claims of machine parts or operational defects. Click here for details
