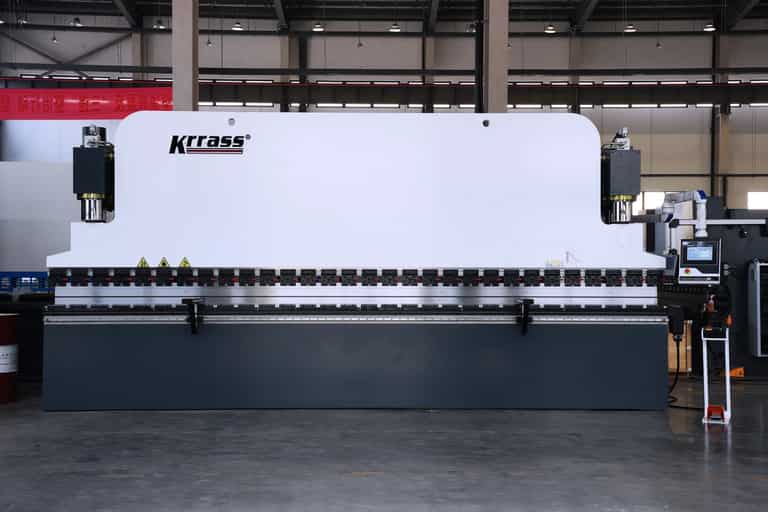

Press Brake Bending Machine MB8-210T6000 3+1 Axis With DELEM DA53T controller
Original price was: $43,200.00.$39,600.00Current price is: $39,600.00.
Model: MB8-210T6000
Axis: 3+1 Axis
Category: CNC Press Brake
Brand Name: KRRASS
Bending Pressure: 2100KN
Bending Length: 6000mm
Controller: DELEM DA-53T
HS Code: 8462299000
Application: Press Brake Bending Machine MB8-210T6000 DA53T 3+1 Axis With DELEM DA53T controller, Sheet Metal Press Brake Price, 210ton CNC Press Brake for China.
Technologyies
| Bending Pressure: | 2100KN |
| Bending Length: | 6000mm |
| CNC Control Axes: | Y1+Y2+X+W Crowning |
| Main Motor: | 15KW |
| Operating Voltage: | 380V 50Hz |
| CNC System: | DA-53T |
| Length* Width* Height: | 6820mm * 1850mm * 3350mm |
Configurations
Main Feature
Due to its user-friendly control unit, robust body frame, flawless design, high efficiency, varied tool use possibilities, outstanding CE safety requirements, and reasonable price range, the 210-ton press brake bending machine for sale with DA-53T controller is the best-in-class globally. It is ideal for bend-sensitive, energy-efficient solutions.
- Simple and solid Hydraulic Press Brake
- Work area can be customized and all types of tool clamping can be installed
- Tailored-made Hydraulic Press Brake

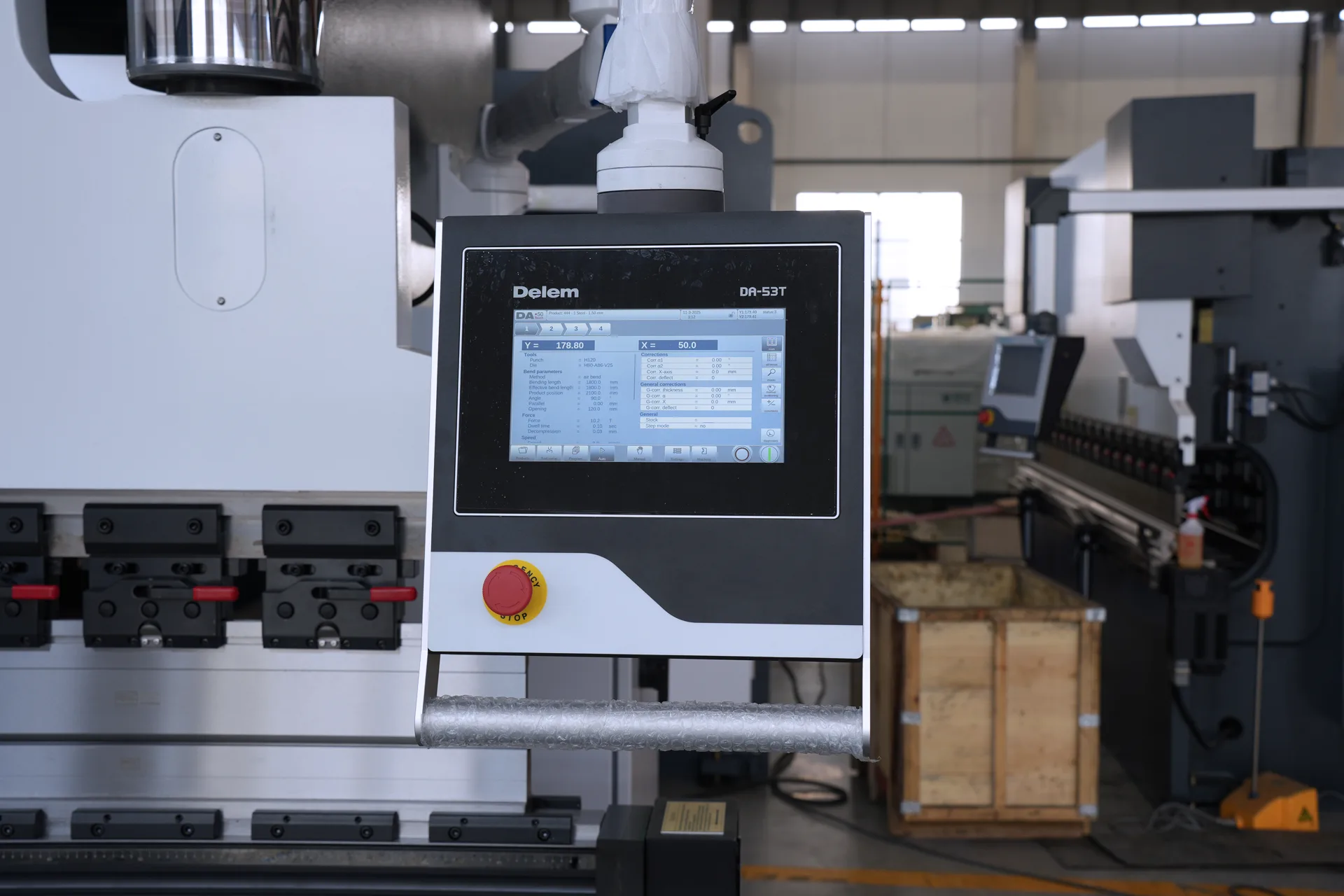

DELEM DA-53T Control
- 10.1″ high resolution colour TFT
- “Hot-key” touch navigation
- Up to 4 axes (Y1,Y2 + 2 aux. axes)
- Tool / material / product library
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- CNC Crowning control
- USB memory stick interfacing
- Profile-53TL offline software

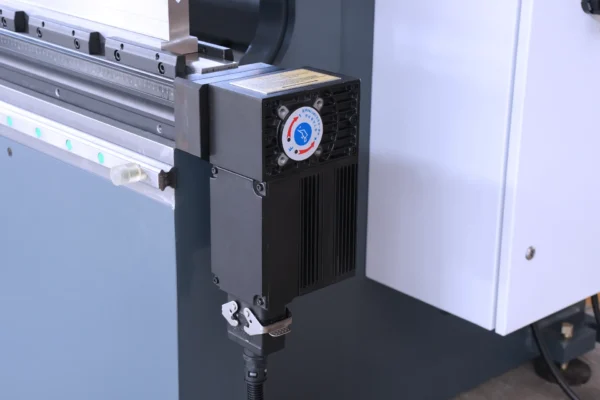

Electric Crowning System
- Very precise bending angles
- Europe type dies with 60 mm and 90 mm
- Base can be clamped as well as single dies with 13 mm tang
- Electric crowning with a controller
- Precise positioning and alignment of the crowning table
- Easy and fast usage
Fagor Grating Ruler
Spain FAGOR provides the controller with feedback on the slider position signal. Using a grating ruler, the CNC controller then modifies the synchronous valve opening size to modify the fuel tank capacity.
Schneider Electric
Even under unstable electrical conditions, high-quality electric parts can function well, and consumers may readily obtain replacements anywhere in the world.
X-axis Servo Motor
In addition, the advantages of servo motors include:
- High reliability: Highly reliable
- High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
- High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds
German Siemens Main Motor
The well-known German brand motor prolongs the CNC press brake machine's service life and maintains a quiet operating environment.
Rexroth Proportional Valve
To guarantee that the CNC press brake machine tool operates with great stability and precision at high speeds, the German Rexroth completely closed-loop electro-hydraulic servo high-frequency synchronous control system is used.

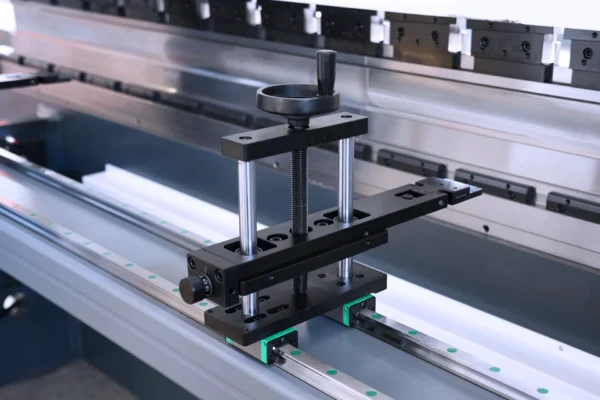

Liftable Backgauge
With a high-precision backgauge, clients may enter the product's dimensions into the machine and have it positioned precisely with an accuracy of 0.01mm.
X-axis Guide Rail and Lead Screw
- Hiwin Ball screws and linear guide on X, R-axis
- Axis X speed 500 mm/s
- The backgauge can be manually adjusted for R-axis height
- Mechanical accuracy ± 0.01 mm
- Fingers with double stop and micrometric adjustment
High-precision Quick Mold Change Device
The upper mold may be trimmed to the customer's specifications and is separated into several gold sizes.
A Single-V concentric mold is used in the bottom mold, which can accommodate customers' bending of materials of varying thicknesses. Additionally, the mold may be altered to meet the needs of the client. to satisfy clients' highest demands.
Front Material Support
It is possible to rotate and raise and lower the front support. It may be quite helpful and lighten your load when you wish to bend larger metal sheets.
South Korea KACON Foot Switch
South Korea brand foot switch ismovableand can stop the machineanytime by theemergency button.
Thickness of workbench (150mm)
Thickness of side panel (70mm)
Thickness of slider (80mm)
Tooling (Optional)
Standard tooling
Non-Standard tooling
Gooseneck tooling
Double-V Concentric Mold
Four-V Concentric Mold
Multi-V Mold
Warranty
30-DAY MONEY BACK GUARANTEE
You should feel completely satisfied with your KRRASS Press Brake purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new KRRASS machine that we do, which is why every Press Brake purchase includes our Hassle-Free KRRASS 30-Day Return option in order to fully experience and evaluate their new KRRASS machine. It allows you to return or exchange your KRRASS purchase, for any reason, within 30 days of initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the 15% restocking fee for items & accessories, 25% KRRASS Press Brake Machine Series customization fee, and shipping or handling costs are not included. Click here for details
2-YEAR LIMITED MACHINE WARRANTY
2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the KRRASS All Series of products will perform according to the warranty policy stated above from date of invoice. Products will be free from defects in materials and workmanship under normal use and service for the stated period. KRRASS has the responsibility to offer a timely solution and/or repair if deemed inoperable or defective by KRRASS Repair & Support Specialists. Clients are obligated to show proof of any such claims of machine parts or operational defects. Click here for details
