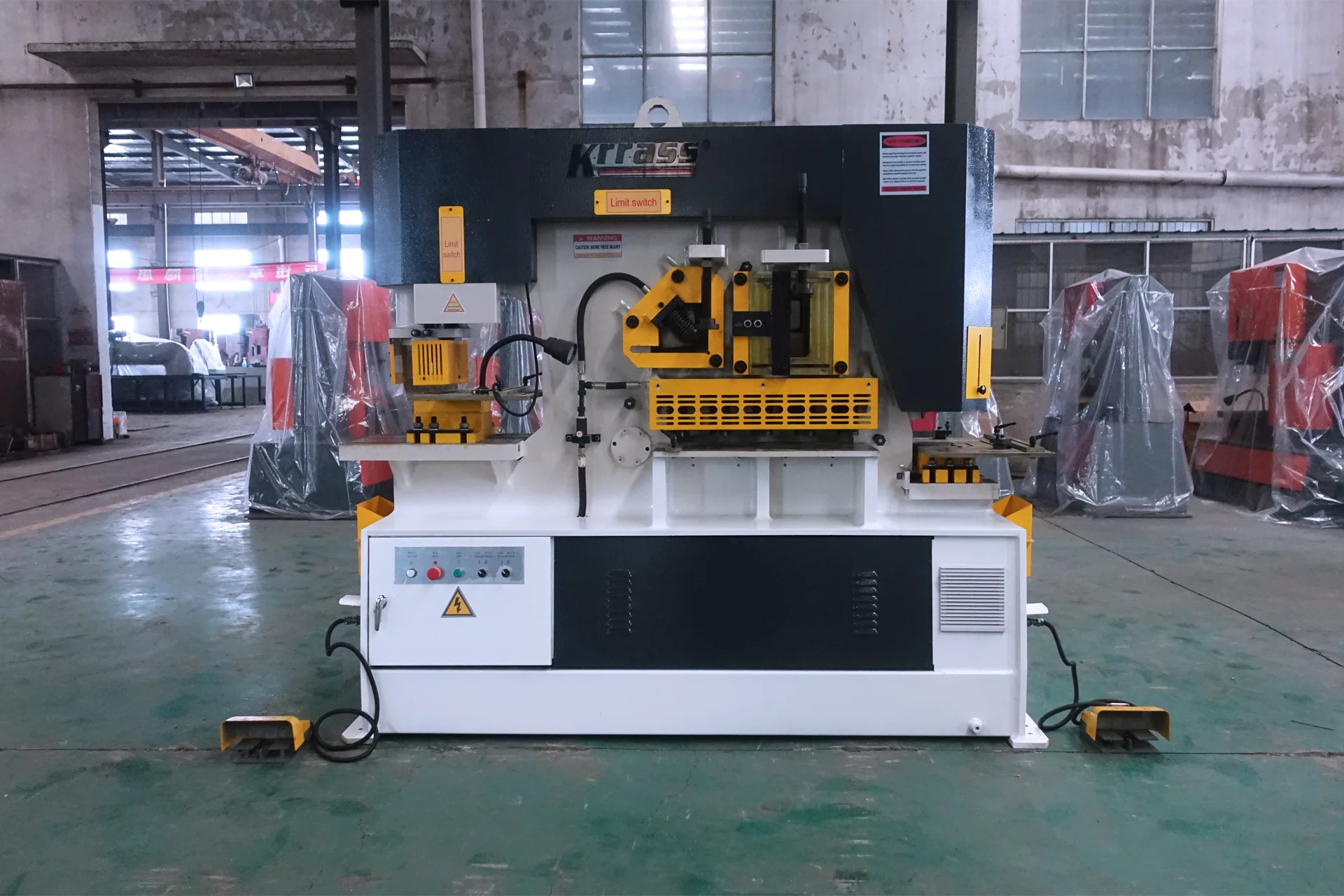

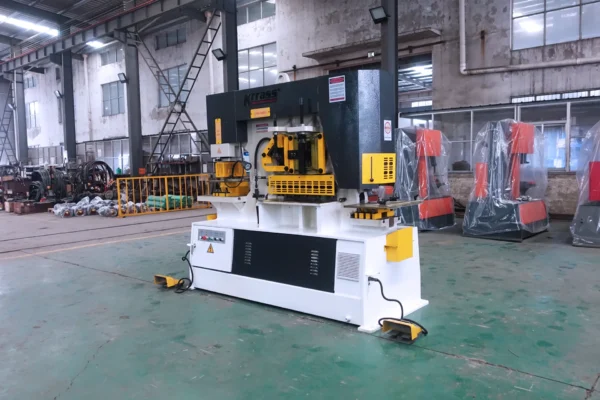

Affordable Ironworker Machine for small workshops, Hydraulic Ironworker Machine with multiple stations
Original price was: $10,400.00.$9,350.00Current price is: $9,350.00.
Model: Q35Y-25
Punching Pressure: 120T
Category: Ironworker Machine
Brand Name: KRRASS
Depth of Throat: 400mm
Motor Power: 11KW
Weight: 4200Kg
HS Code: 8462490000
Application: Affordable Hydraulic Ironworker Machine for startups, Ironworker Machine for stainless steel cutting and punching, Ironworker Machine for punching, shearing, and notching
Technologyies
| Punching Pressure | 120T |
| Depth of Throat | 400mm |
| Motor Power | 11KW |
| Operating Voltage | 380V 50Hz |
| Weight | 4200Kg |
| Length* Width* Height | 2355mm * 960mm * 2090mm |
Configurations
Main Feature
This Hydraulic ironworker machine is designed with multi-functions to save labor, time, energy, and cost. This versatile aspect allows the machine to meet the diversified needs of the metal fabricating industry.
- Top performances allow to accurately and cost-efficiently cut pieces in high volumes.
- We has entirely designed the proportional oil hydraulic circuit. It is optimized for every guillotine shear size, with high-quality and reliable parts.
- Hydraulic ironworker machine is available in a wide range of models and powers. Ironworker machines can customize parameters to the highest levels in the category.

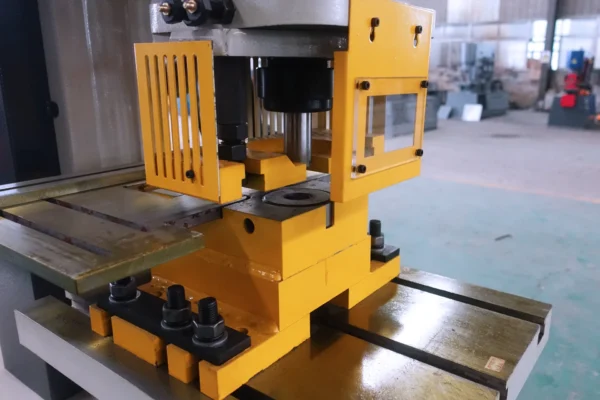

Punching Station
All metal punching operations of the ironworker machine are processed using hydraulic power, thus allowing the machine to punch very efficiently and silently. Punching is silent, powerful, and efficient. The device can either be used to hit thick metal or thin materials layered together. The waste materials come off together and in layers. The punching table consists of two parts: the first is the punching flange, and the second is the holder. There are different holders for different materials. The holder is a device that prevents the fabric from coming back with the punch after cutting.
Flat Bars Shearing Station
The metal shear station of the ironworker machine has been equipped with simple and sturdy fixing mechanisms. Depending on the machine’s cutting capacity, You can adjust it for any steel thickness. The shearing capacity can go up to 17.71 inches in the flat bar or the cutting of corner profiles. The shearing blades, built for mass production, can be used on both sides (the upper blade has two cutting edges, and the lower blade has four cutting edges); this ensures a clean cut with minimal warping, from the total capacity to a thickness of only 1/8 inch.
Bars Cutting Station
Standard machines are equipped with blades for cutting U-sections. The edges are held by efficient jaws, ensuring the equipment can be arranged easily at the device without any additional adjustment. Thanks to other equipment, cutting I-section profiles, T-sections, and round and square metal bars is possible.
Notching Station
High Adaptability: With QBH, QCS, and other optical fiber interfaces, it can be adapted to various mainstream laser devices.
Excellent Design: Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.

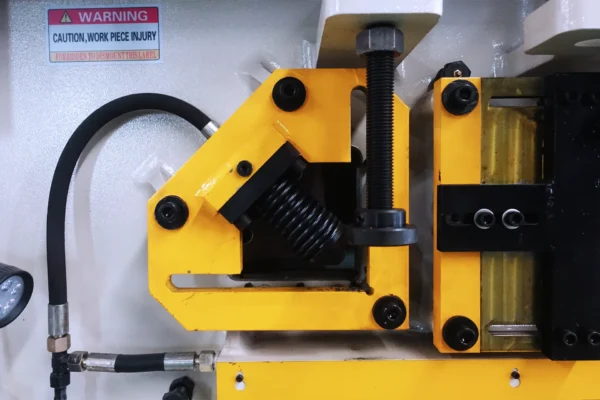

Angle Shearing Station
This station enables the cutting of large angles with a capacity ranging from 17 3/4 inches to 35 1/2 inches.
Warranty
30-DAY MONEY BACK GUARANTEE
You should feel completely satisfied with your KRRASS Ironworker Machine purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new KRRASS machine that we do, which is why every Ironworker Machine purchase includes our Hassle-Free KRRASS 30-Day Return option in order to fully experience and evaluate their new KRRASS machine. It allows you to return or exchange your KRRASS purchase, for any reason, within 30 days of initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the 15% restocking fee for items & accessories, 25% KRRASS Press Brake Machine Series customization fee, and shipping or handling costs are not included. Click here for details
2-YEAR LIMITED MACHINE WARRANTY
2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the KRRASS All Series of products will perform according to the warranty policy stated above from date of invoice. Products will be free from defects in materials and workmanship under normal use and service for the stated period. KRRASS has the responsibility to offer a timely solution and/or repair if deemed inoperable or defective by KRRASS Repair & Support Specialists. Clients are obligated to show proof of any such claims of machine parts or operational defects. Click here for details
