In the world of metal fabrication, the three-roller plate rolling machine plays a vital role in countless applications. This advanced equipment uses the ingenious principle of three-roller rolling to shape flat plates into intricate forms like circles, cones, and arcs, making it indispensable in industries requiring precision and versatility.

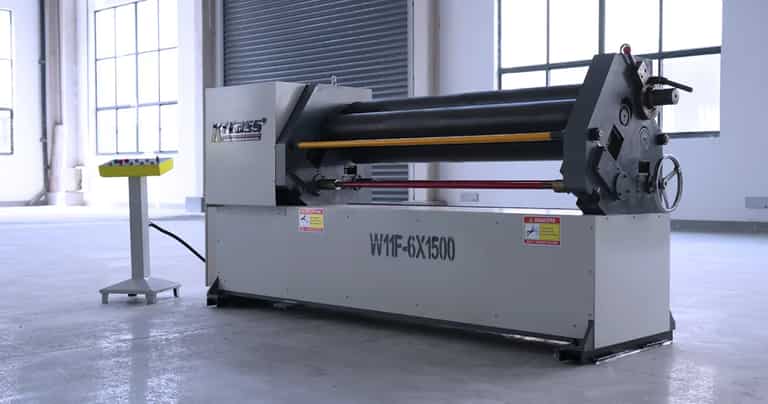

A three-roller plate rolling machine is specifically designed to bend and form metal sheets or plates into cylindrical shapes, curves, or other desired configurations. The three-roller plate rolling machine applications span a wide range of industries, thanks to its main components: three rollers arranged in a triangular setup. These rollers are key to the machine's functionality and adaptability.
Working Principle of the 3-Roller Plate Rolling Process
At the heart of this amazing technology is the principle of the three-roller plate rolling process. Unlike the usual bending methods that often use two rolls, the three-roller system gives us better stability and control. The upper roller, which oversees applying the main force, works together with the lower rollers to slowly shape the plate into what we want. This group of three rollers makes sure the pressure is spread evenly, reducing the chance of the material getting distorted and making it easier to get a consistent bend across the whole surface.
- Initial Positioning: First, we put the metal plate between the top roller (also called the upper roll) and the two bottom rollers (lower rolls) in the starting position.
- Adjustment: Then, the operator changes the positions of the bottom rollers to get the bending radius we need. The distance between the bottom rollers decides how big the diameter of the cylindrical shape the metal plate will turn into.
- Rolling Process: After that, we start the rolling process by using the machine's hydraulic system or mechanical parts. The top roller pushes down on the metal plate, and the two bottom rollers spin in opposite directions. The plate slowly moves through the rollers.
- Incremental Bending: As the plate goes through the rollers, it bends a little bit at a time. The curve of the plate gets bigger with each pass through the rollers. The operator can control how much the plate curves by changing the position of the bottom rollers and how much pressure the top roller applies.
- Completion of Bending: After a few passes, the metal plate takes on the cylindrical or curved shape we wanted.
Top 5 Functions of the 3-Roller Plate Rolling Process
- Bending: The main job of the three-roller plate rolling machine is to bend metal plates into cylindrical or curved shapes. This is important in industries like manufacturing, construction, and shipbuilding.
- Versatility: Three-roller plate rolling machines are very versatile. They can manage a wide variety of plate thicknesses and materials. That makes them perfect for all kinds of applications where we need curved or cylindrical metal parts.
- Precision: These machines can bend with an elevated level of precision. This means we can make parts that are exactly the shape we need.
- Efficiency: Plate rolling machines are great at forming large metal pieces with consistent bends. This cuts down on the need for manual work and makes the entire process more productive.
- Customization: Operators can change the bending process by adjusting the position of the bottom rollers. This lets us make different shapes and sizes of parts.
Versatility Unleashed
1. Circular Formations
One of the cool things the three-roller plate bending machine can do is make perfect circular shapes out of plates. Whether we are making cylinders for piping systems or circular parts for machinery, this machine is a must-have. The three rollers work together smoothly to shape the metal into a flawless circle with amazing precision.
2. Conical Conformations
Not only can it make circles, but the three-roller bending machine is also great at making conical shapes. This is useful in industries where tapered structures are common, like aerospace engineering or making special parts for cars. The machine's flexibility shows as it easily turns flat plates into exactly tapered cones, meeting the strict requirements of different fields.
3. Arcs with Accuracy
Besides circles and cones, the three-roller plate bending machine is good at making arcs. This is super valuable when we are making curved parts for building designs, art installations, or any application where we need nice-looking curves that fit together perfectly. The machine's ability to make accurate arcs gives designers and engineers so many more possibilities.
Top 4 Applications Across Industries
The diverse ways we can use the three-roller plate bending machine show how important it is in modern manufacturing.
Industry | Application |
Aerospace | Conical parts for aircraft fuselages |
Construction | Curved steel beams for architectural structures |
Manufacturing | Circular sections for machinery components |
Automotive | Tapered parts for exhaust systems |
This table shows how adaptable the machine is in different sectors and how it helps make the basic parts that shape our modern world.
Precision in Operation
The three-roller plate bending machine is successful not just because it is versatile, but also because it is so precise in the fabrication process. The rollers move together smoothly, and with advanced control systems, we can control the bending process carefully. This precision makes sure the final product is exactly what we need and meets strict quality standards.
Conclusion
The three-roller plate bending machine is a notable example of how innovation and functionality come together in metalworking. Using the three-roller rolling principle gives it amazing stability and control, letting us make complex shapes with precision. From circular forms to conical structures and beautiful arcs, this machine has completely changed what is possible in metal fabrication. Its applications are all over different industries, helping to make the important parts that build our modern world. As we keep pushing the limits of manufacturing, the three-roller plate bending machine will always be there, opening new possibilities in metal shaping.
